Machines in stock.

Used presses, industrial robots, NC feeders and machine tools available from Asai Metal, and new SANES presses supplied to order. Tell us what you need and we will confirm availability, condition and price.

Presses 6

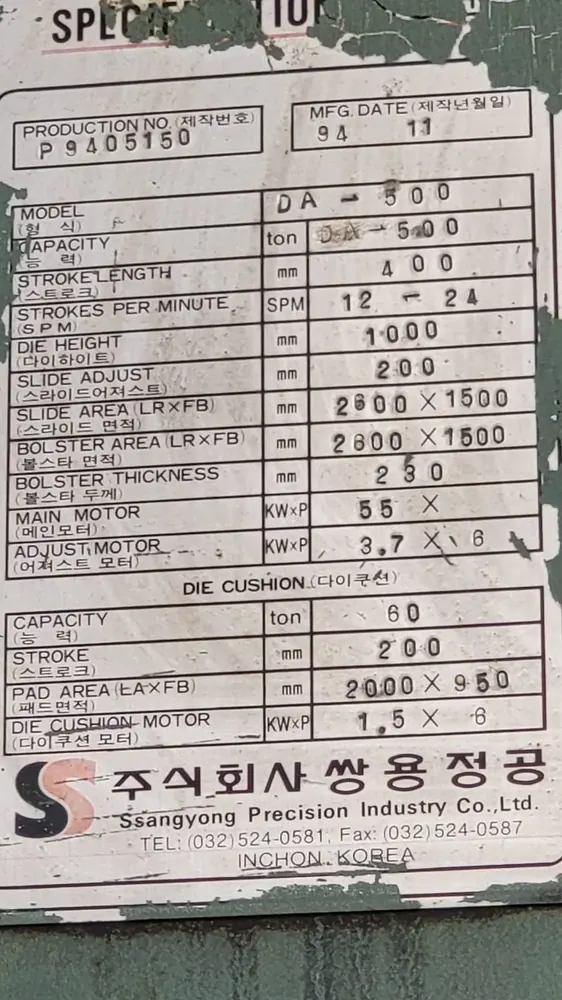

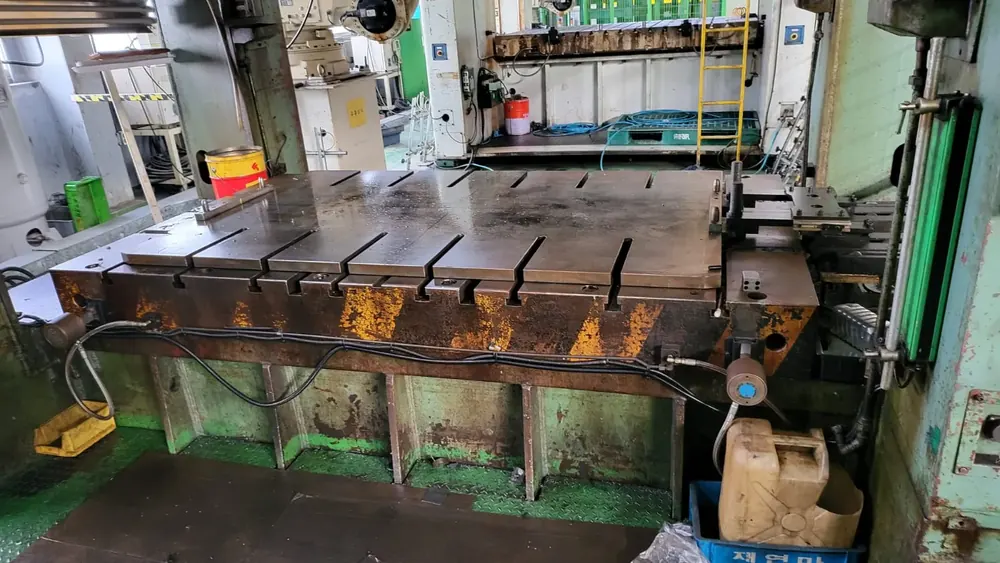

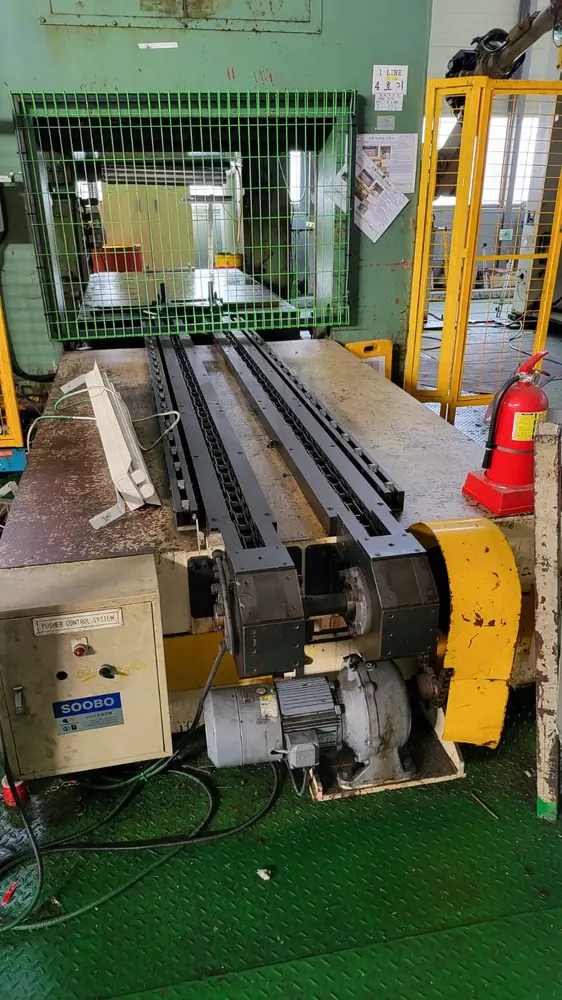

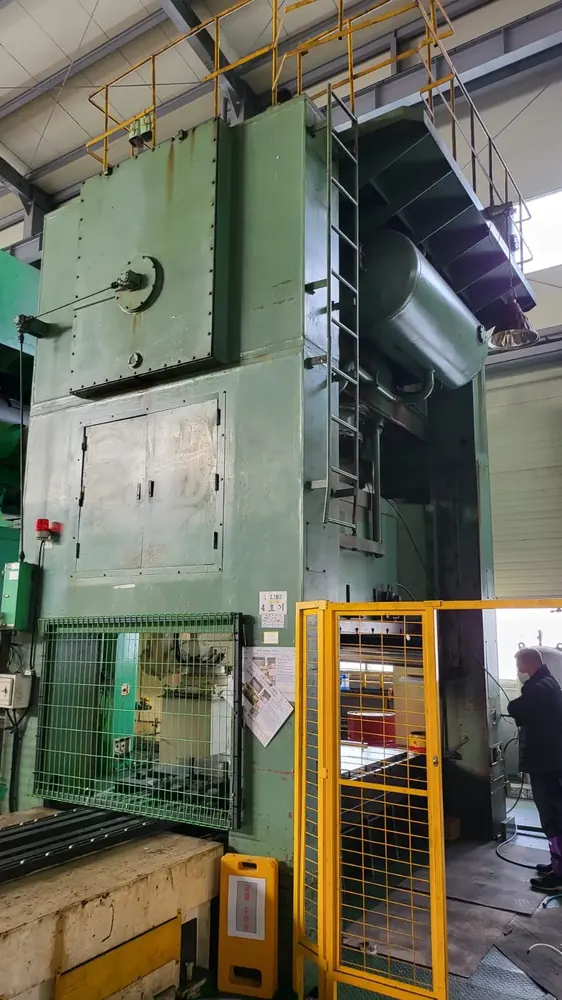

P-01Straight-side mechanical press

Ssangyong DA 500

Capacity: 500 t
Stroke: 400 mm
Strokes/min: 12–24
Bolster: 2600 × 1500 mm

Specification & photos

Specification
Brand	Ssangyong
Model	DA 500
Capacity	500 t
Stroke length	400 mm
Strokes per minute	12–24
Die height	1000 mm
Slide adjustment	200 mm
Slide area (LR × FB)	2600 × 1500 mm
Bolster area (LR × FB)	2600 × 1500 mm
Bolster thickness	230 mm
Main motor	55 kW
Adjust motor	3.7 kW × 8P
Die cushion capacity	60 t
Die cushion stroke	200 mm
Die cushion pad area	2000 × 950 mm
Die cushion motor	1.5 kW × 6P

1 unit listed Enquire

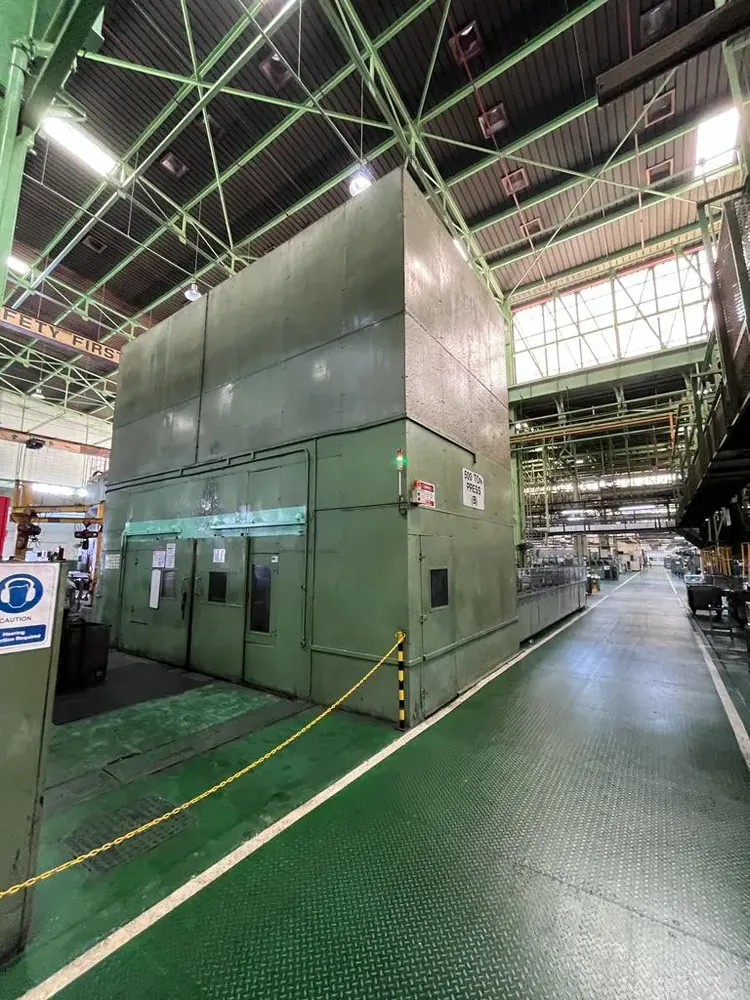

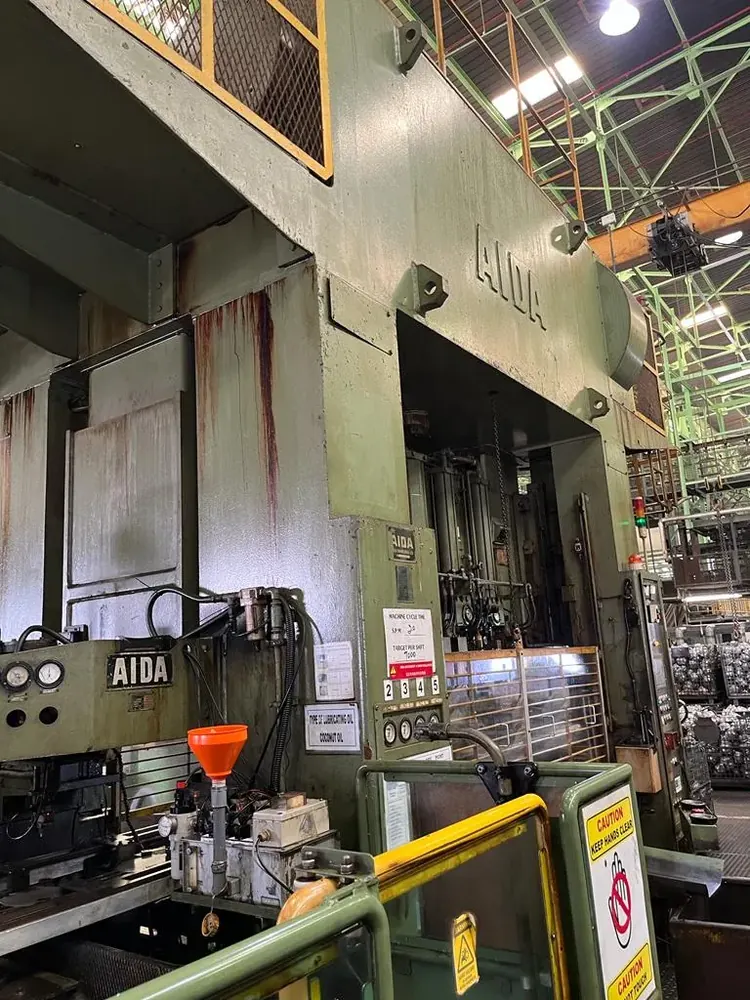

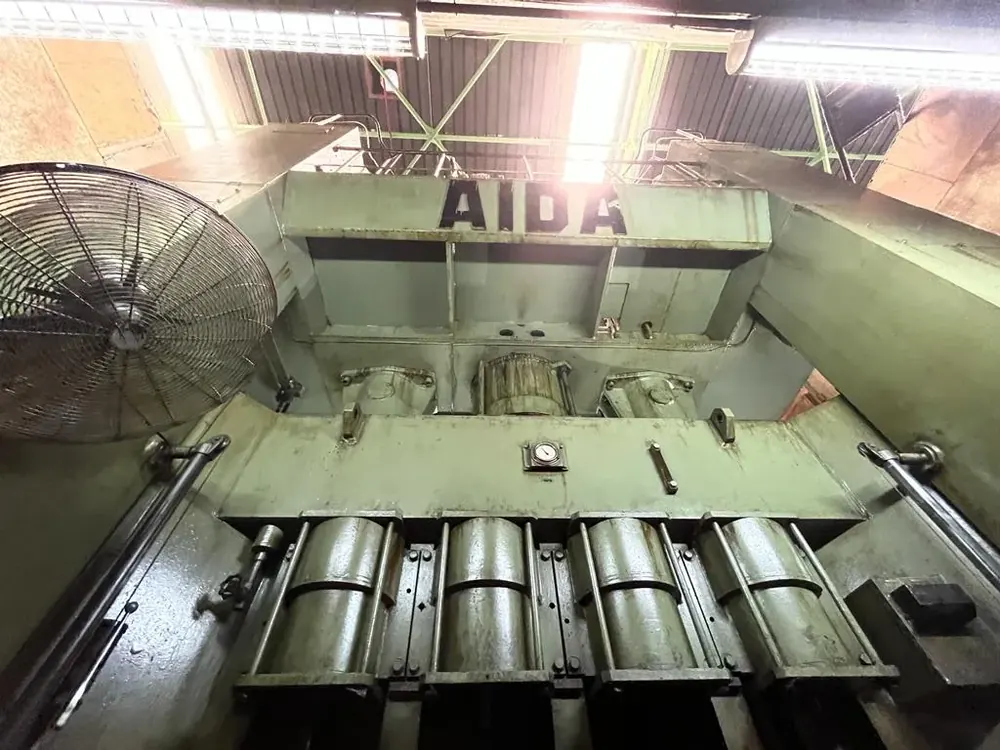

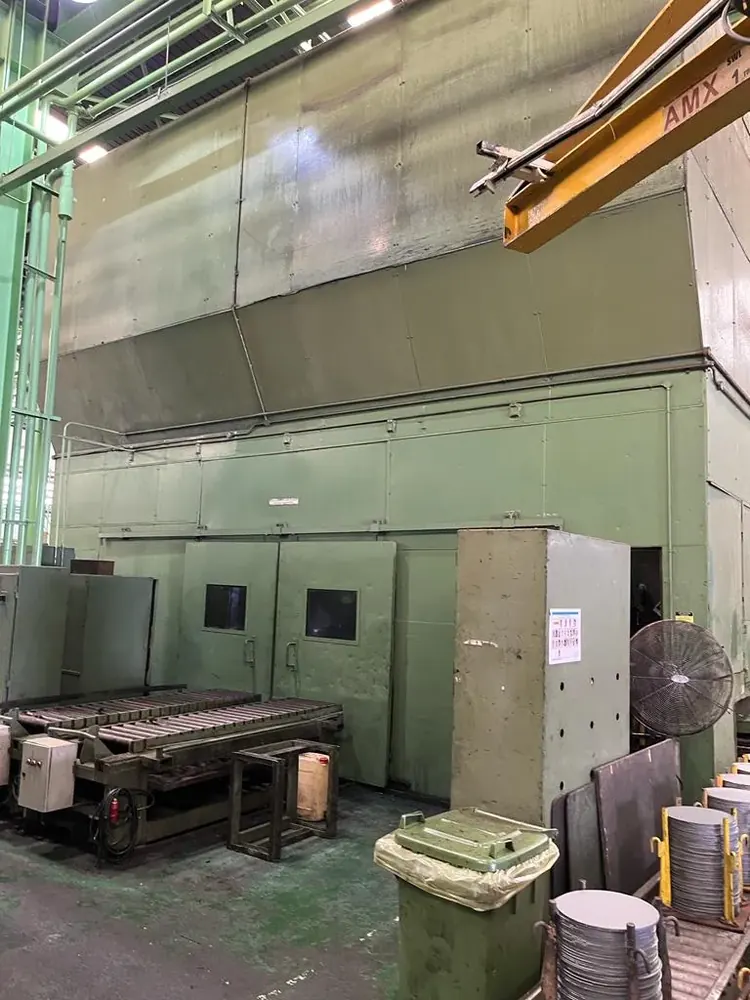

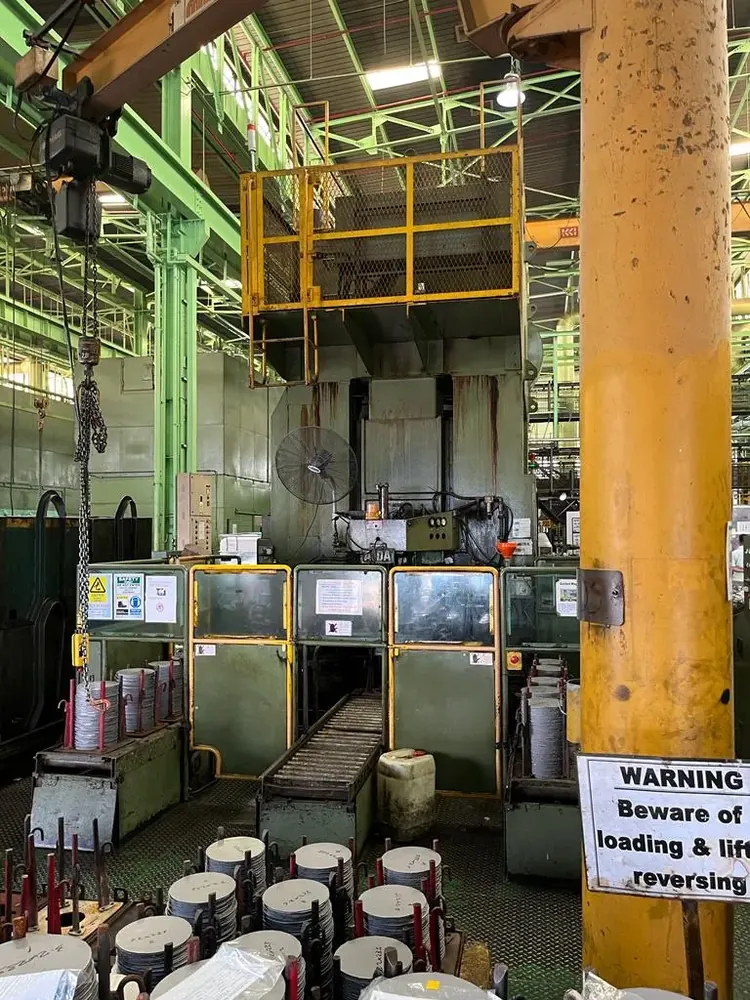

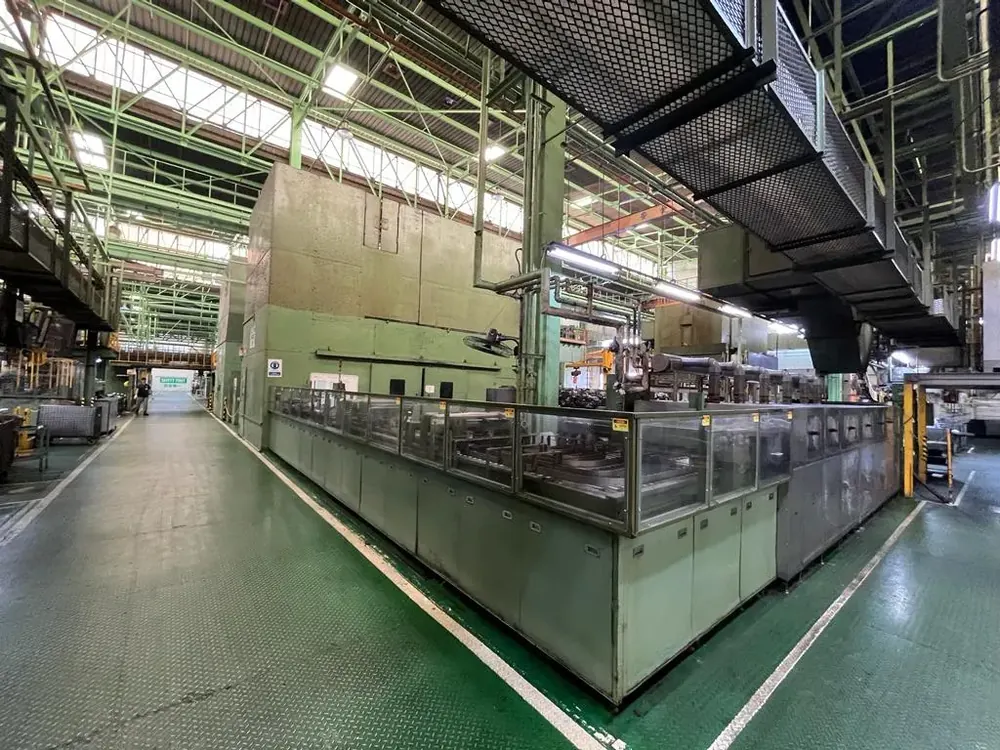

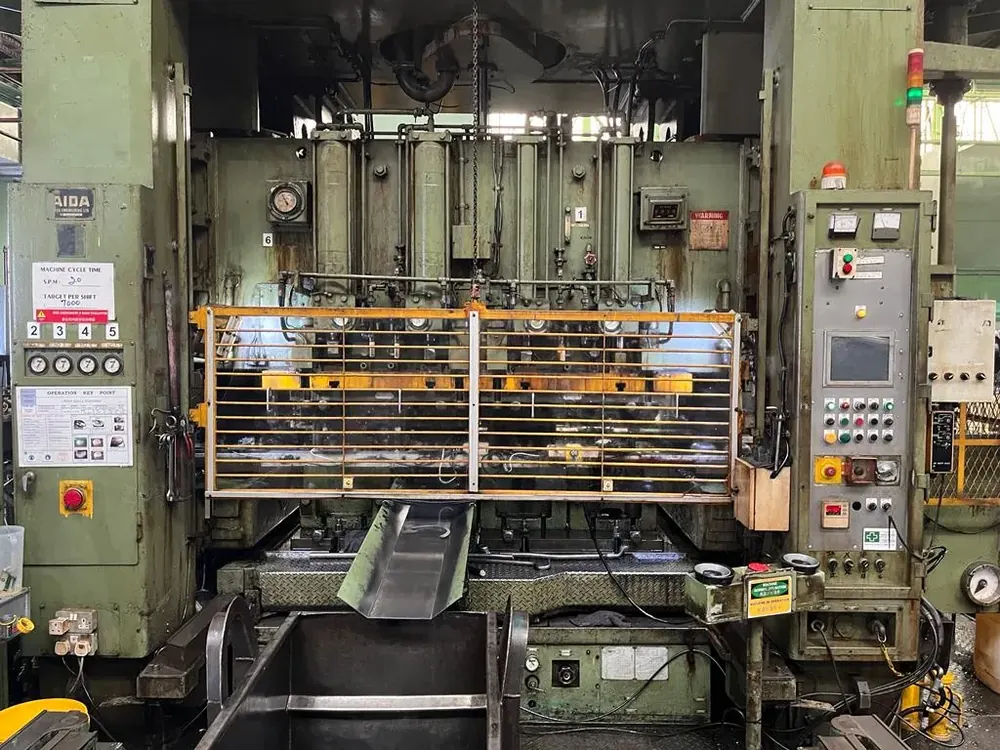

P-02Transfer press

AIDA F2-300

Capacity: 300 t
Stroke: 400 mm
Strokes/min: 18–35
Bolster: 2000 × 1000 mm

Specification & photos

Specification
Brand	AIDA
Model	F2-300
Capacity	300 t
Strokes per minute	18–35 (25)
Stroke length	400 mm
Die height	700 mm
Slide adjustment	100 mm
Slide area (LR × FB)	2000 × 1000 mm
Bolster area (LR × FB)	2000 × 1000 mm
Bolster thickness	220 mm
Approx. size	5900 L × 3170 W × 5800 H mm
Approx. weight	56 t

1 unit listed Enquire

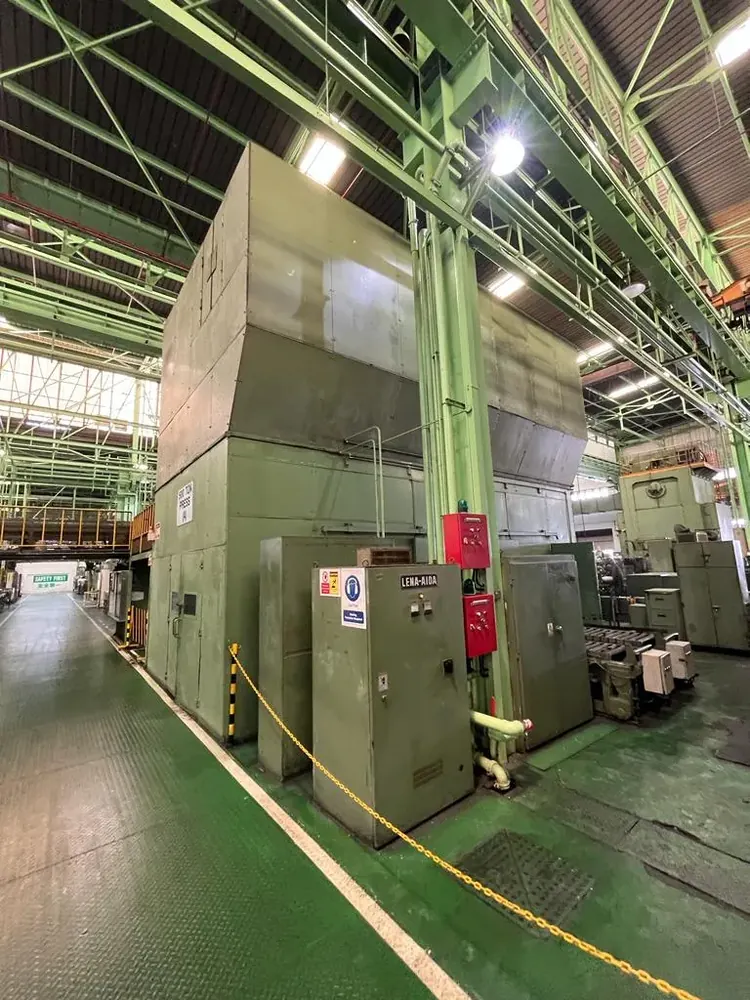

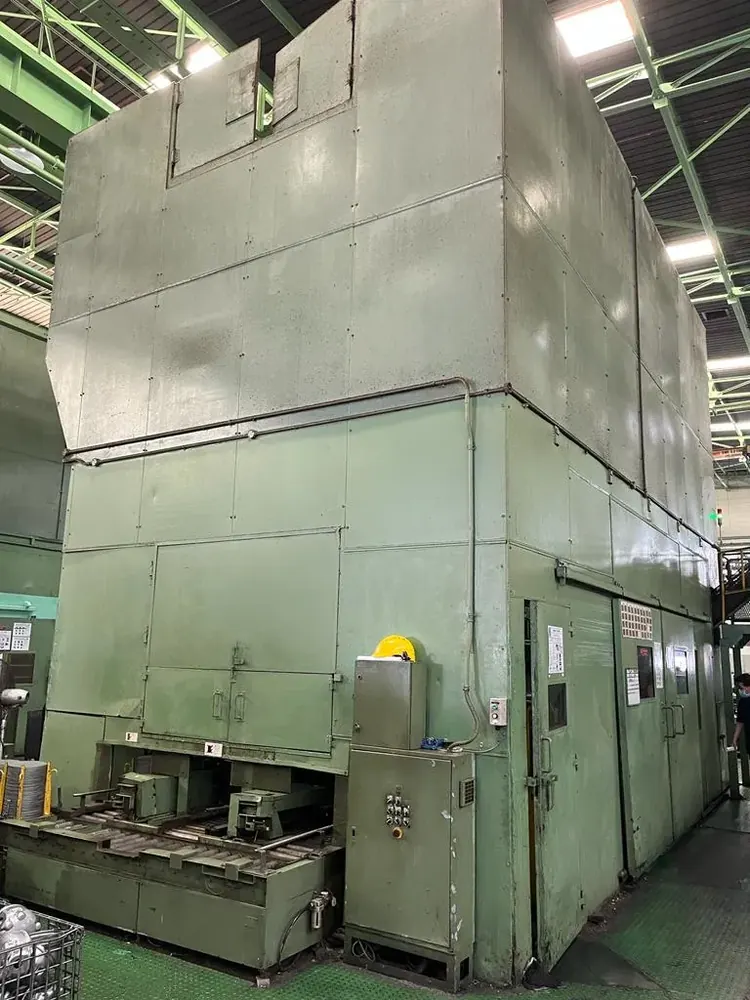

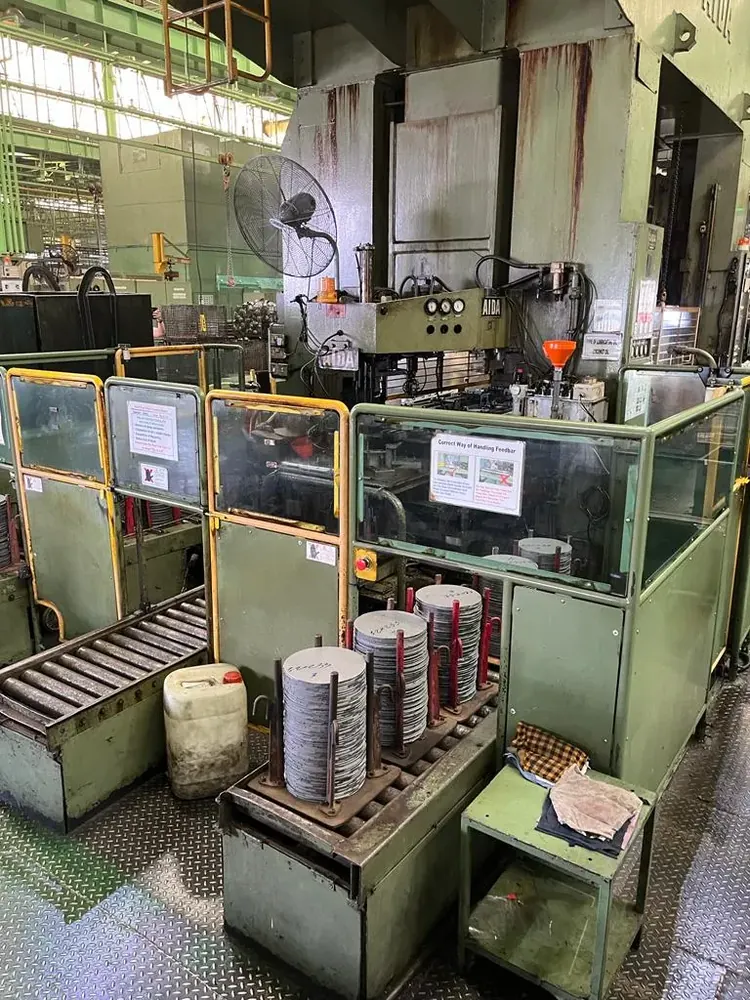

P-03Transfer press · unit A

AIDA FTO-L50

Capacity: 500 t
Stroke: 430 mm
Strokes/min: 10–20
Bolster: 2500 × 1000 mm

Specification & photos

Specification
Brand	AIDA
Model	FTO-L50
Capacity	500 t
Strokes per minute	10–20
Stroke length	430 mm
Die height	785 mm
Slide adjustment	100 mm
Slide area (LR × FB)	2500 × 1000 mm
Bolster area (LR × FB)	2500 × 1000 mm
Approx. weight	90 t

1 unit listed Enquire

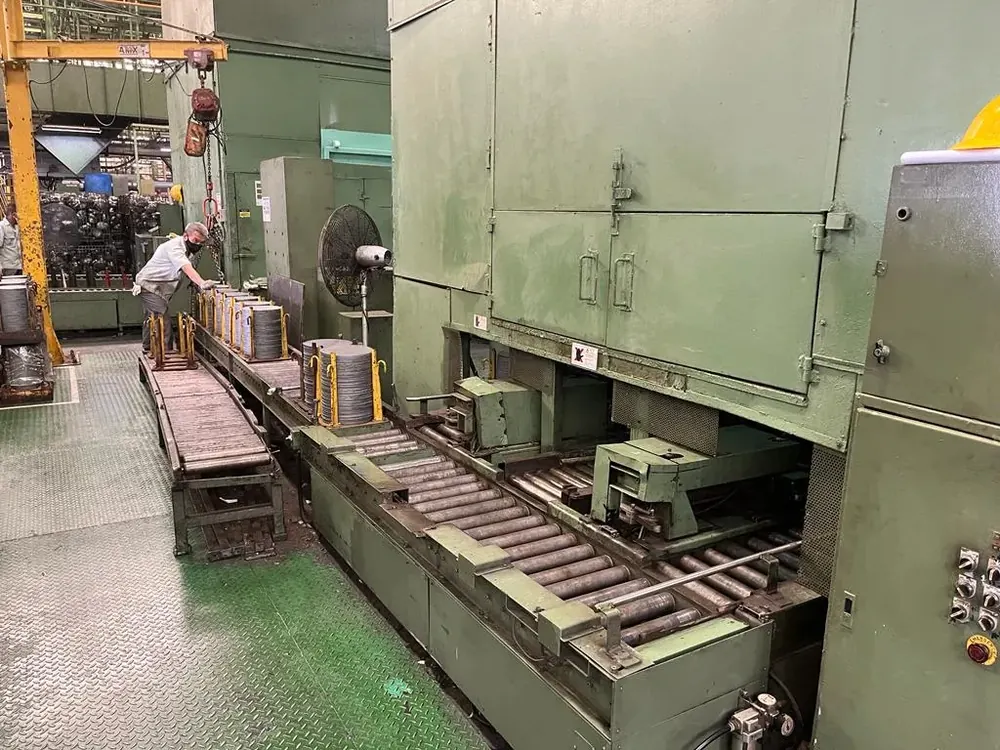

P-04Transfer press · unit B

AIDA FTO-L50

Capacity: 500 t
Stroke: 430 mm
Strokes/min: 12–23
Bolster: 2500 × 1000 mm

Specification & photos

Specification
Brand	AIDA
Model	FTO-L50
Capacity	500 t
Strokes per minute	12–23
Stroke length	430 mm
Die height	785 mm
Slide adjustment	100 mm
Slide area (LR × FB)	2500 × 1000 mm
Bolster area (LR × FB)	2500 × 1000 mm
Approx. weight	90 t

1 unit listed Enquire

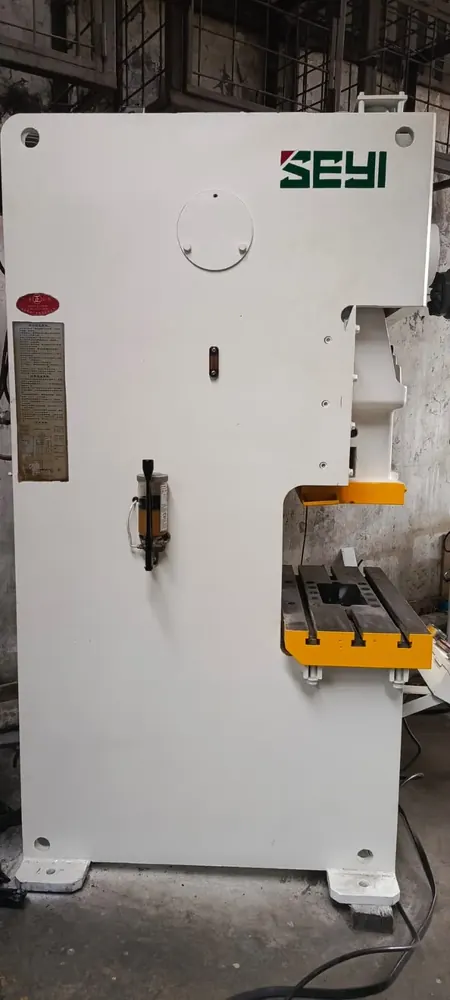

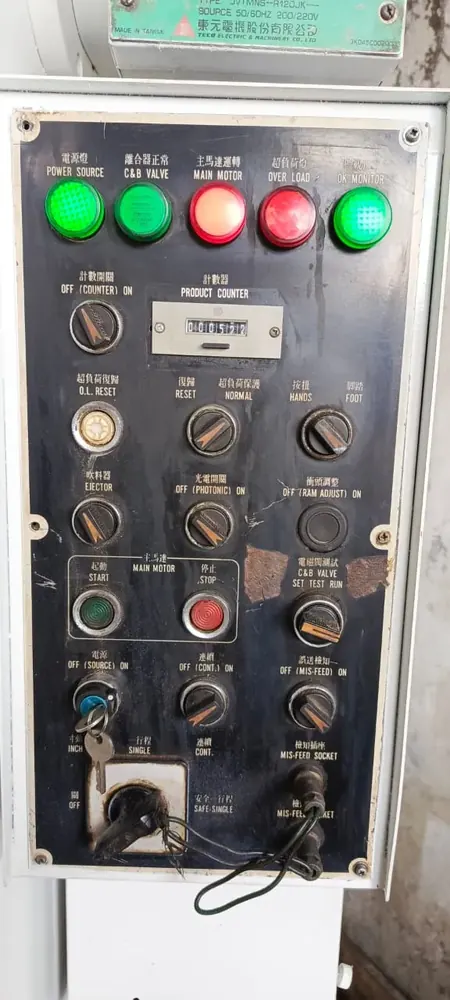

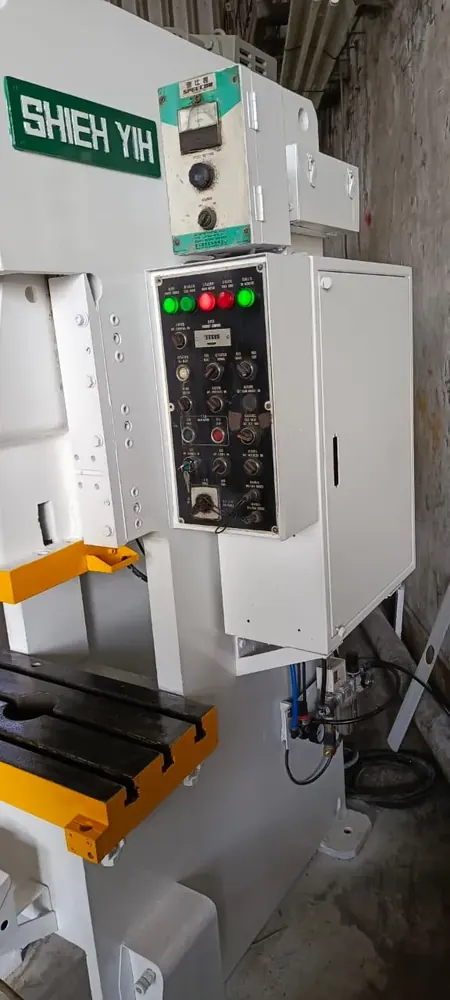

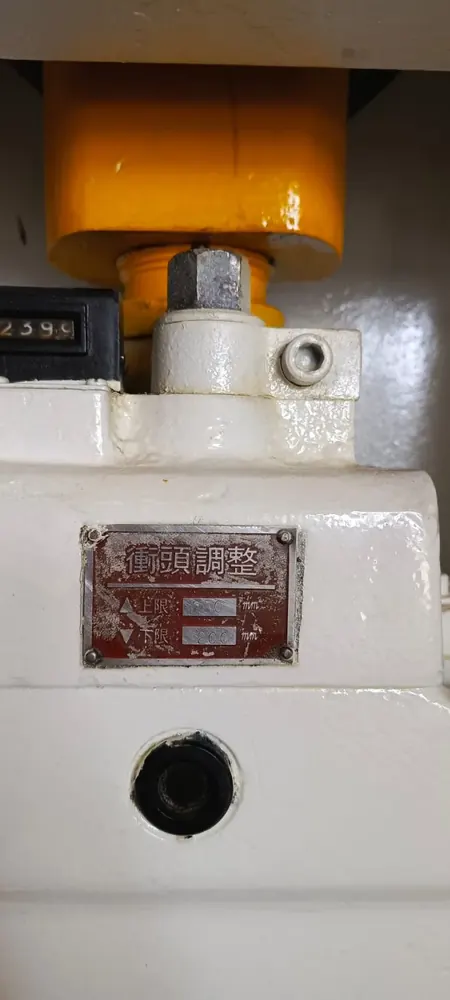

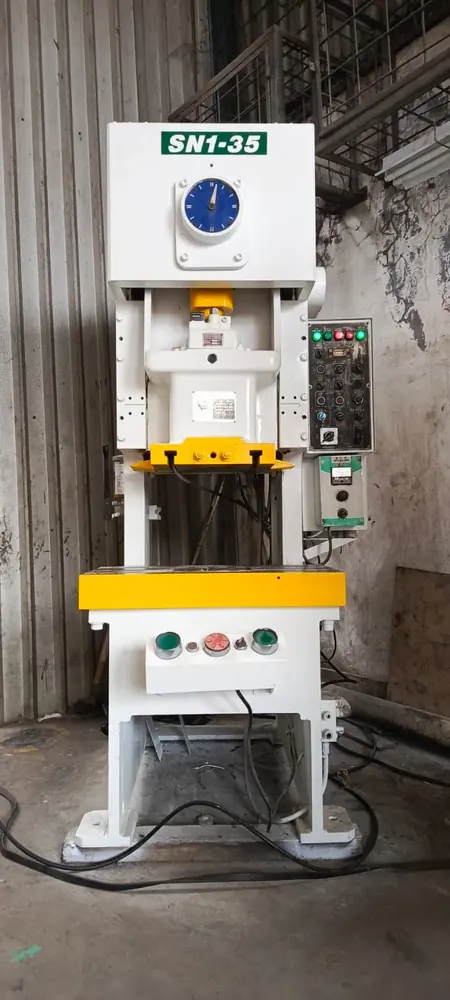

P-05C-frame crank press

Shieh Yih (SEYI) 35 t

Capacity: 35 t

Specification & photos

Specification
Brand	Shieh Yih (SEYI)
Capacity	35 t

1 unit listed Enquire

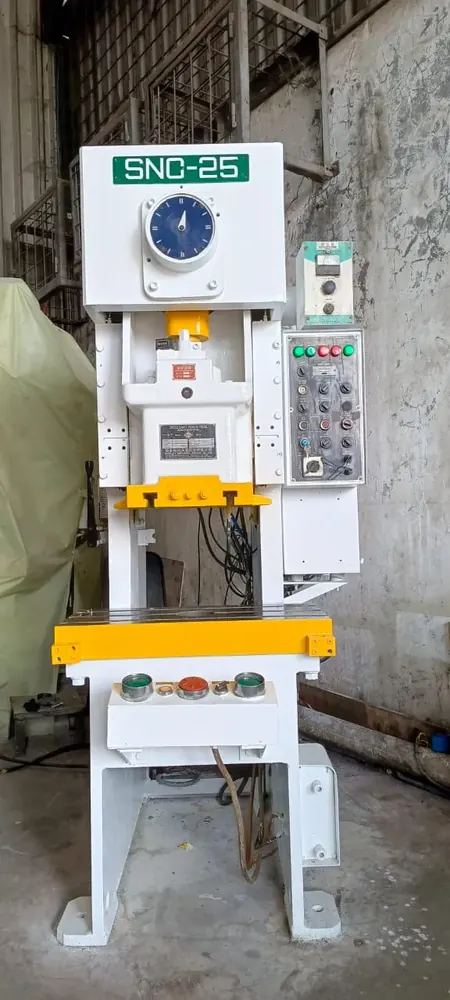

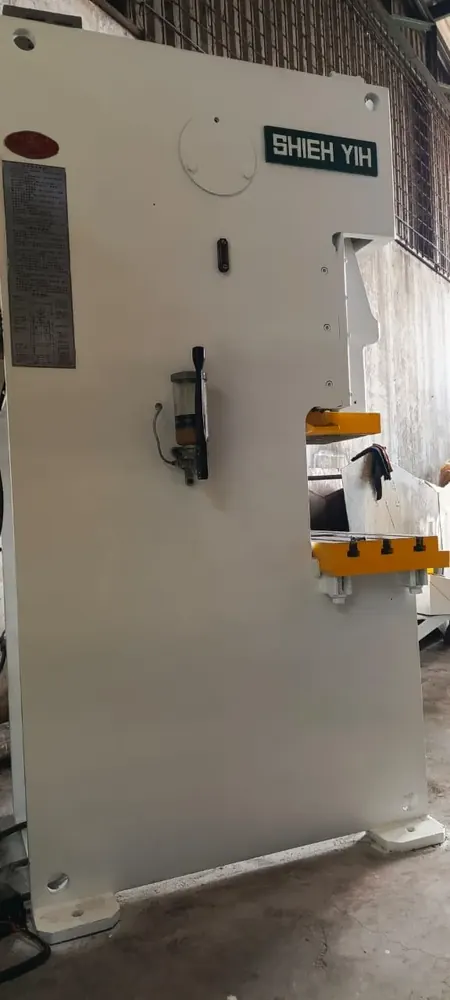

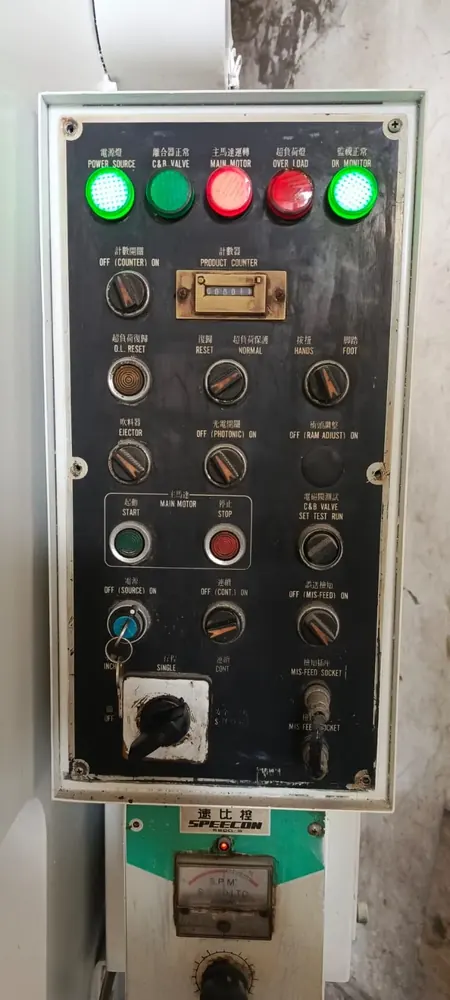

P-06C-frame crank press

Shieh Yih (SEYI) SNC-25

Capacity: 25 t
Stroke: 80 mm
Die height: 230 mm
Built: 1987

Specification & photos

Specification
Brand	Shieh Yih (SEYI)
Model	SNC-25
Capacity	25 t
Stroke	80 mm
Die height	230 mm
Ram adjustment	50 mm
Manufactured	October 1987

1 unit listed Enquire

Industrial robots 3

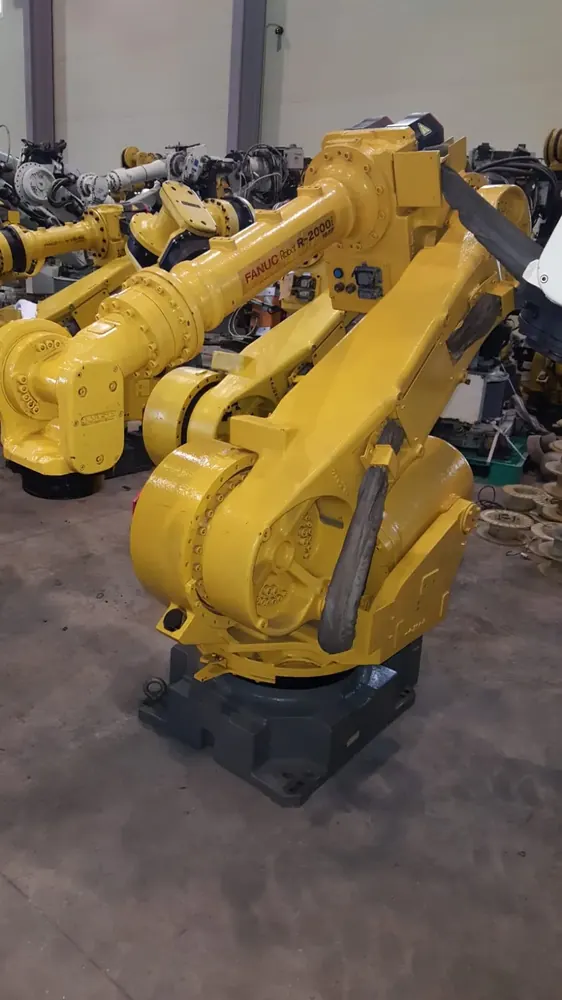

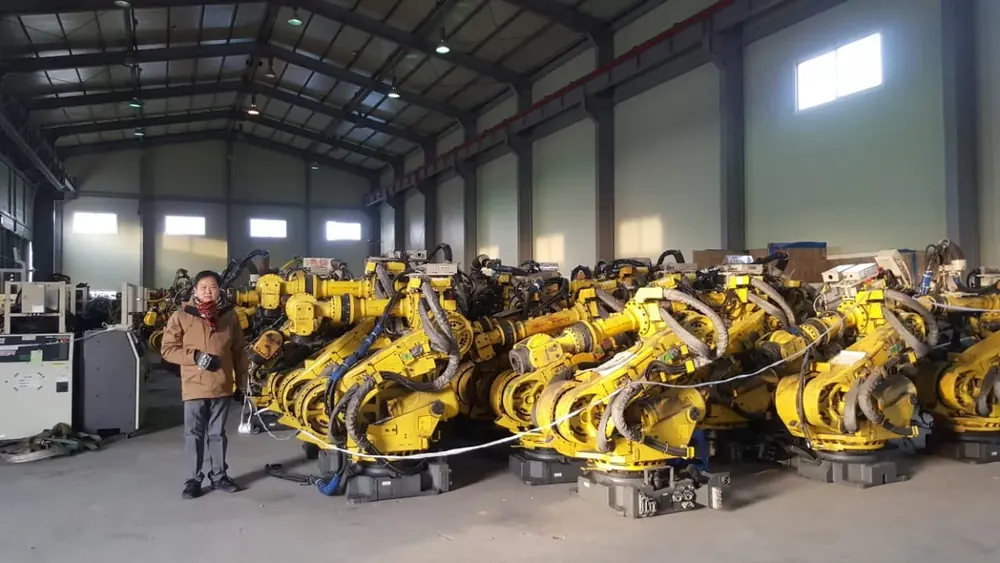

R-016-axis industrial robot

FANUC R-2000iA/165F

Axes: 6
Wrist payload: 165 kg
Reach: 2650 mm
Repeatability: 0.3 mm

Specification & photos

Specification
Brand	FANUC
Model	R-2000iA/165F
Axes	6
Payload, wrist	165 kg
Payload, J3 arm	25 kg
Payload, J2 base	250 kg
Reach	2650 mm
Repeatability	0.3 mm
Interference radius	583 mm

Quantity on request Enquire

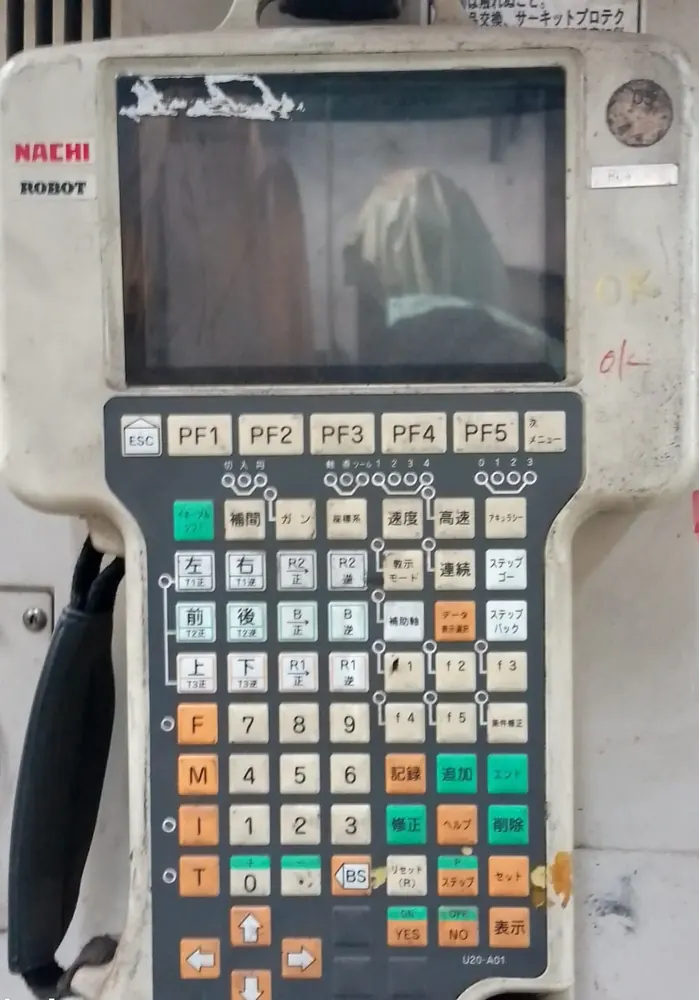

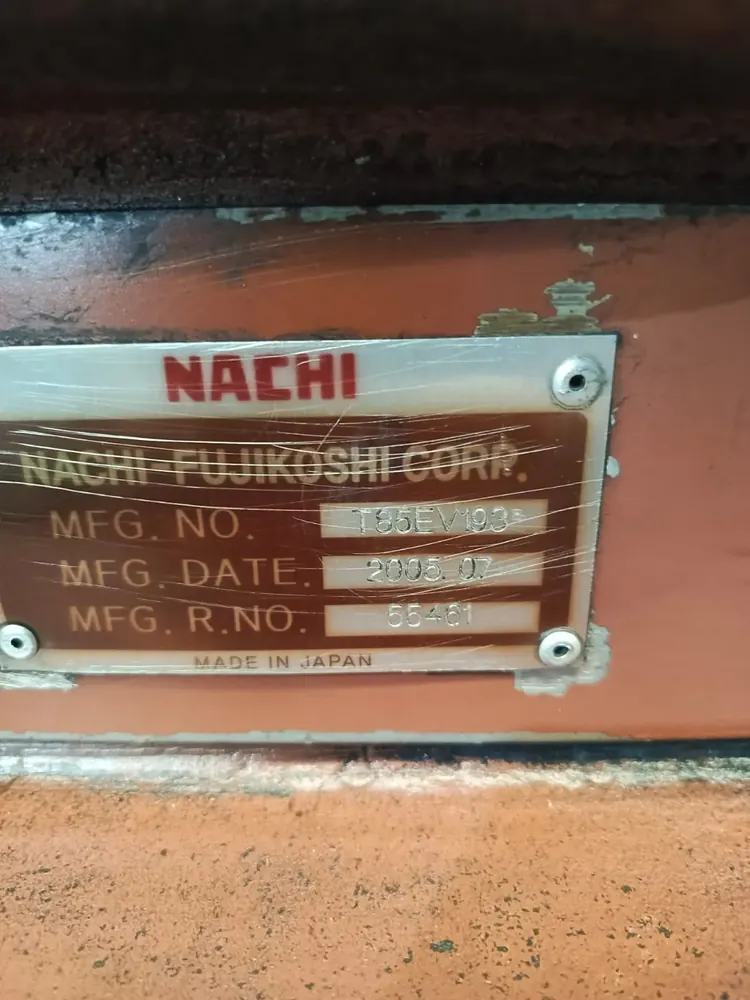

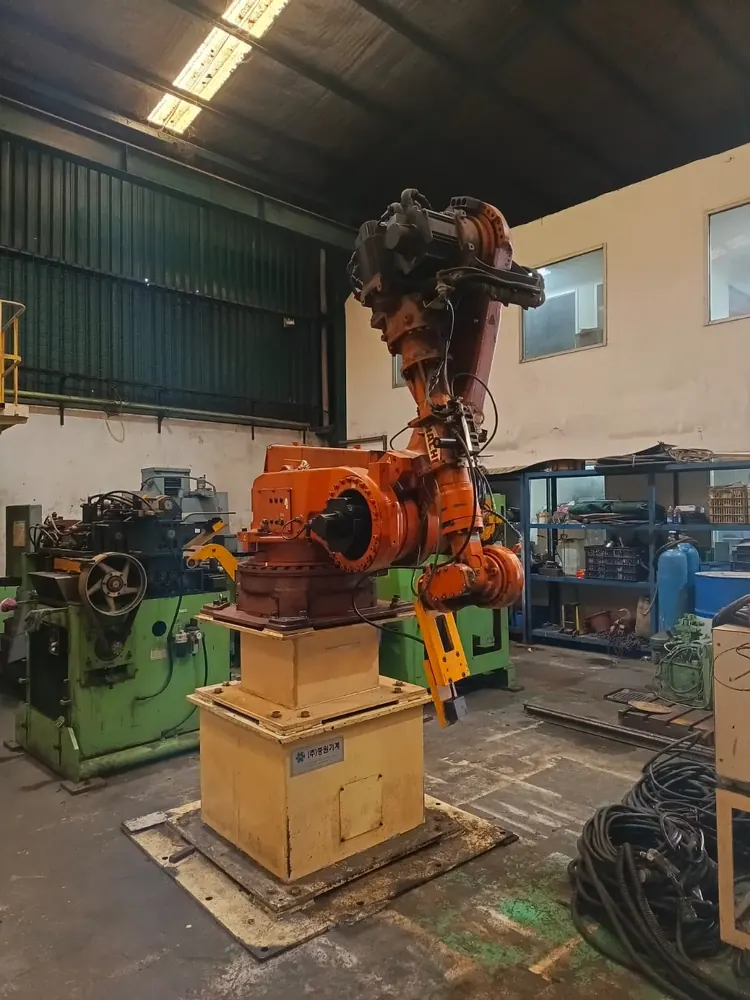

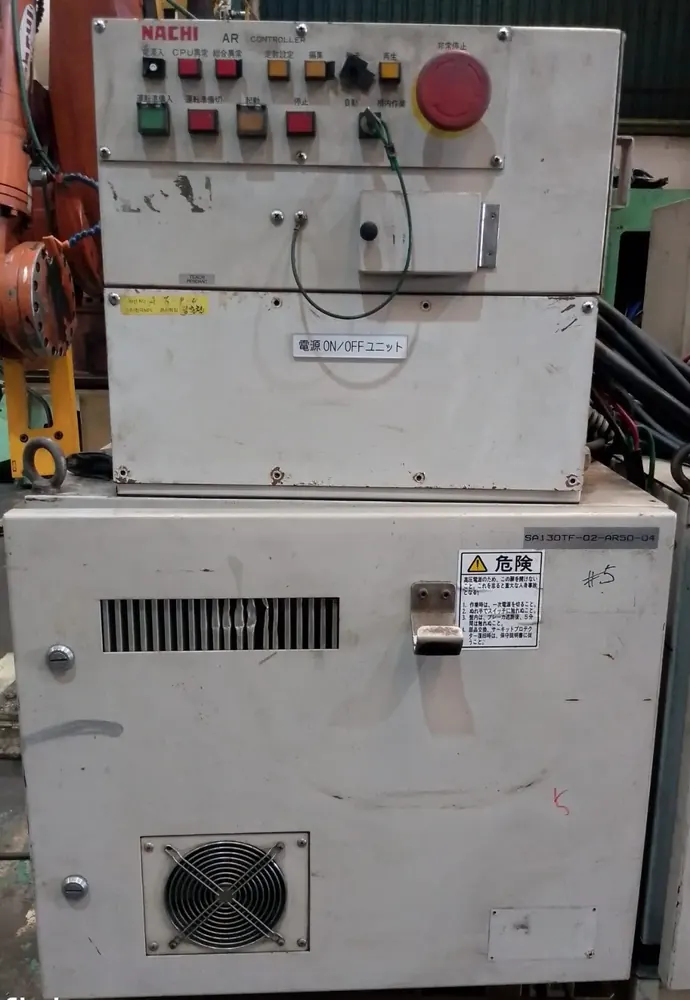

R-02Industrial robot

NACHI

Built: 2005

Specification & photos

Specification
Brand	NACHI (Nachi-Fujikoshi)
Manufactured	July 2005

6 units listed Enquire

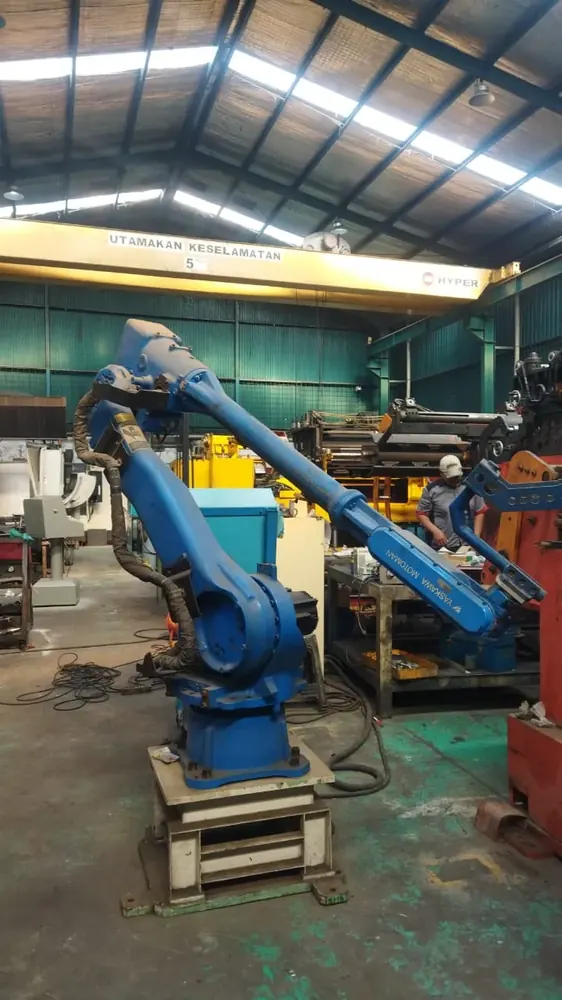

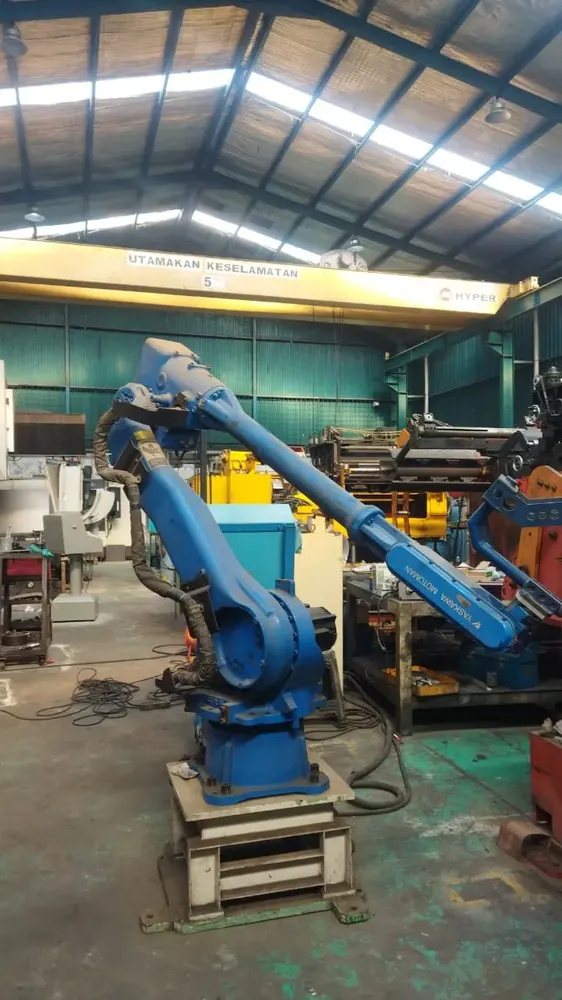

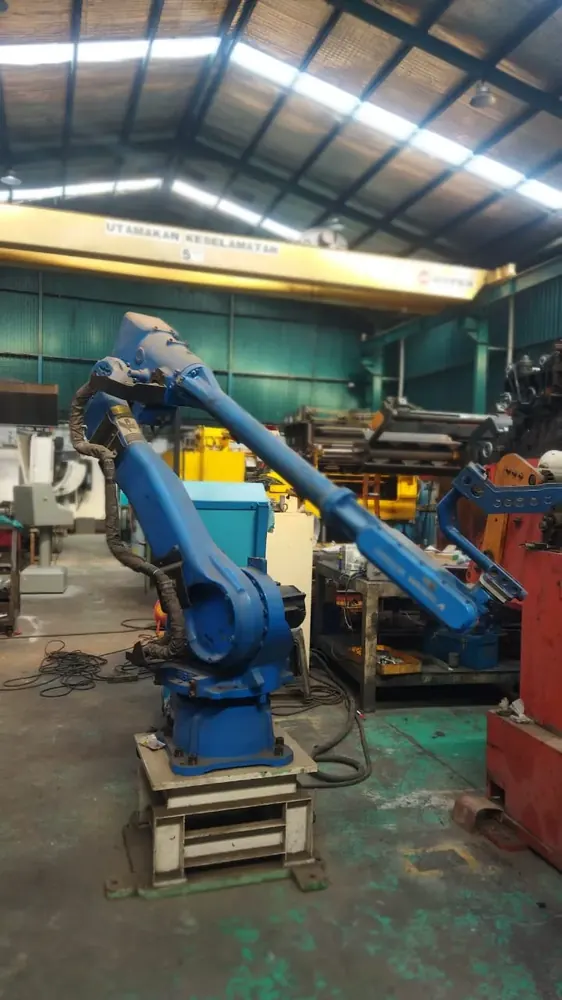

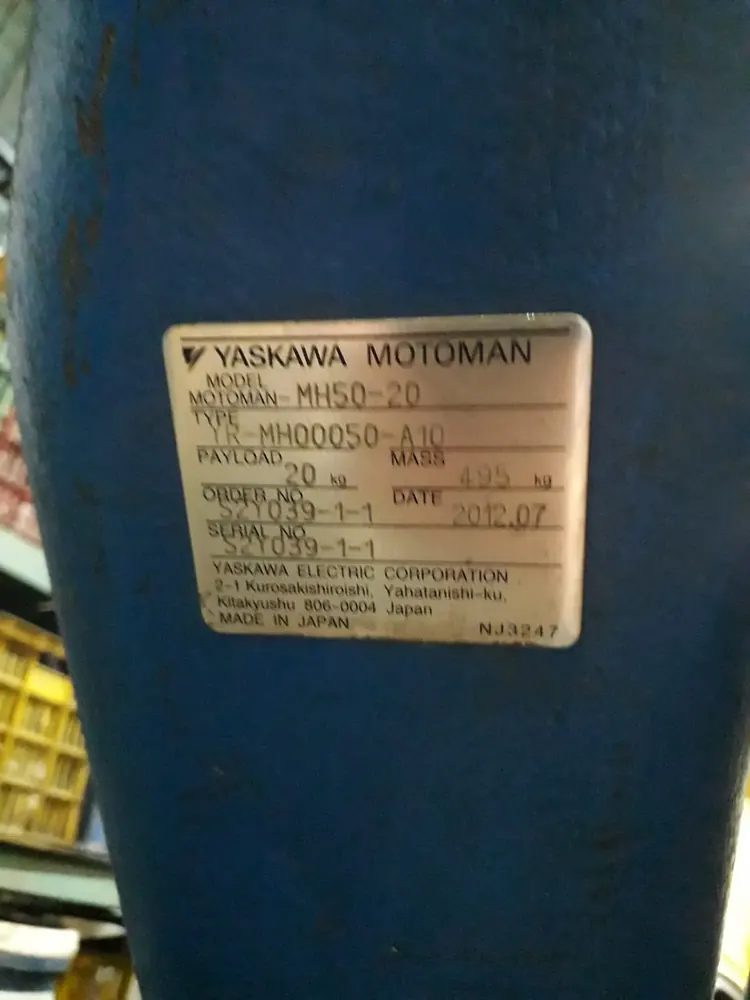

R-03Industrial robot

Yaskawa Motoman MH50-20

Payload: 20 kg
Mass: 495 kg
Built: 2012
Origin: Japan

Specification & photos

Specification
Brand	Yaskawa
Model	Motoman MH50-20
Type	YR-MH00050-A10
Payload	20 kg
Mass	495 kg
Manufactured	July 2012
Made in	Japan

1 unit listed Enquire

NC feeders & coil handling 3

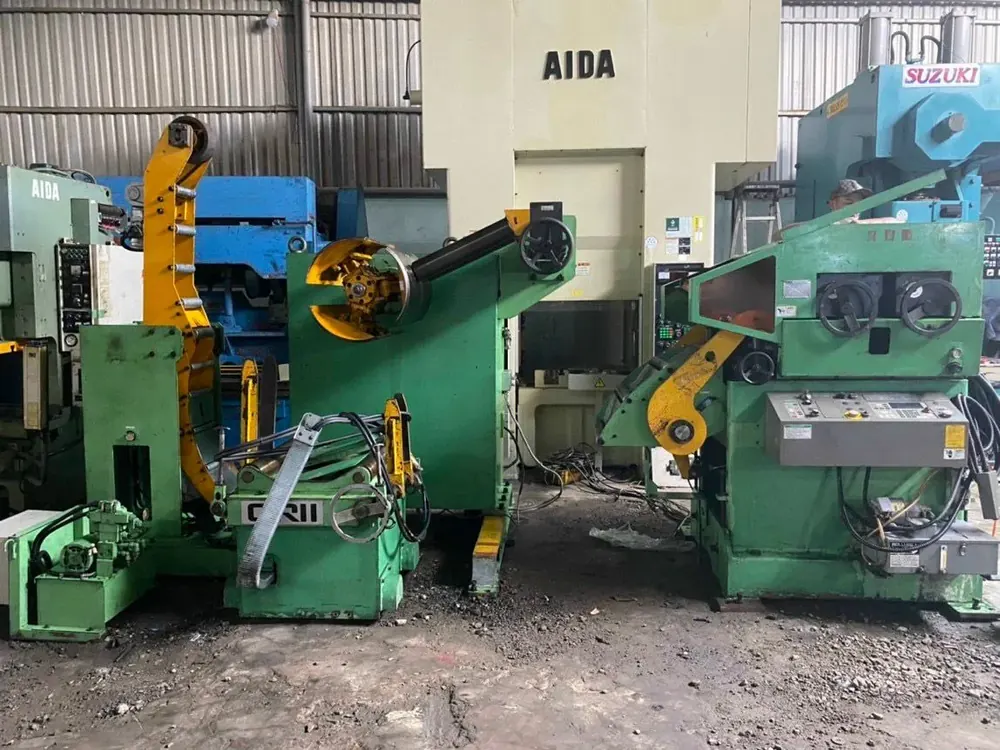

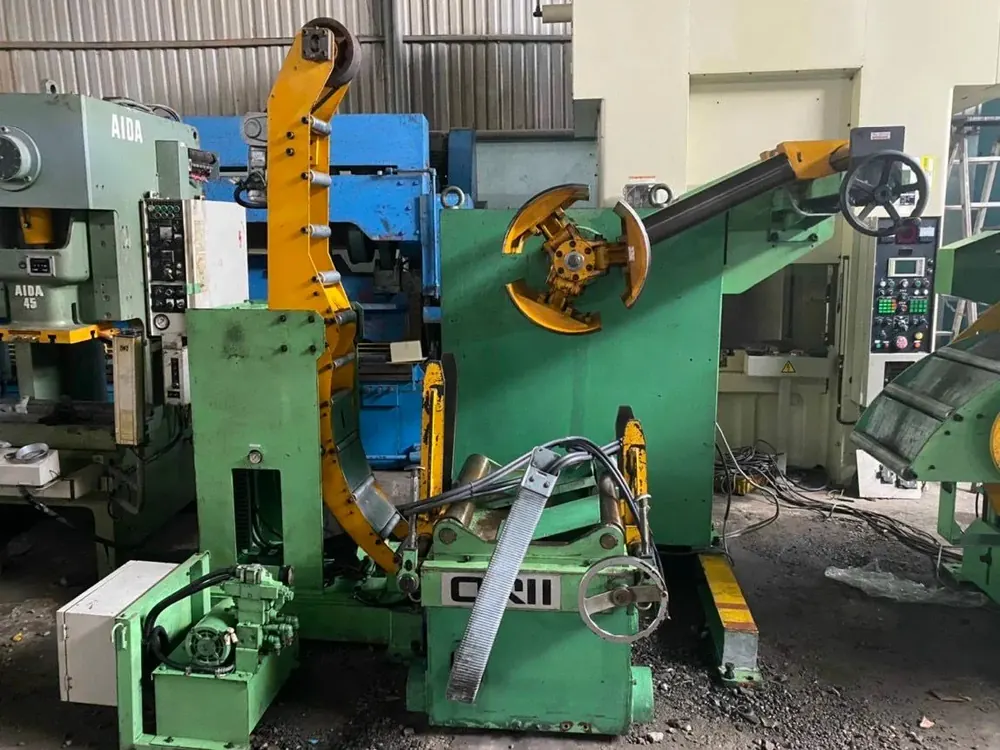

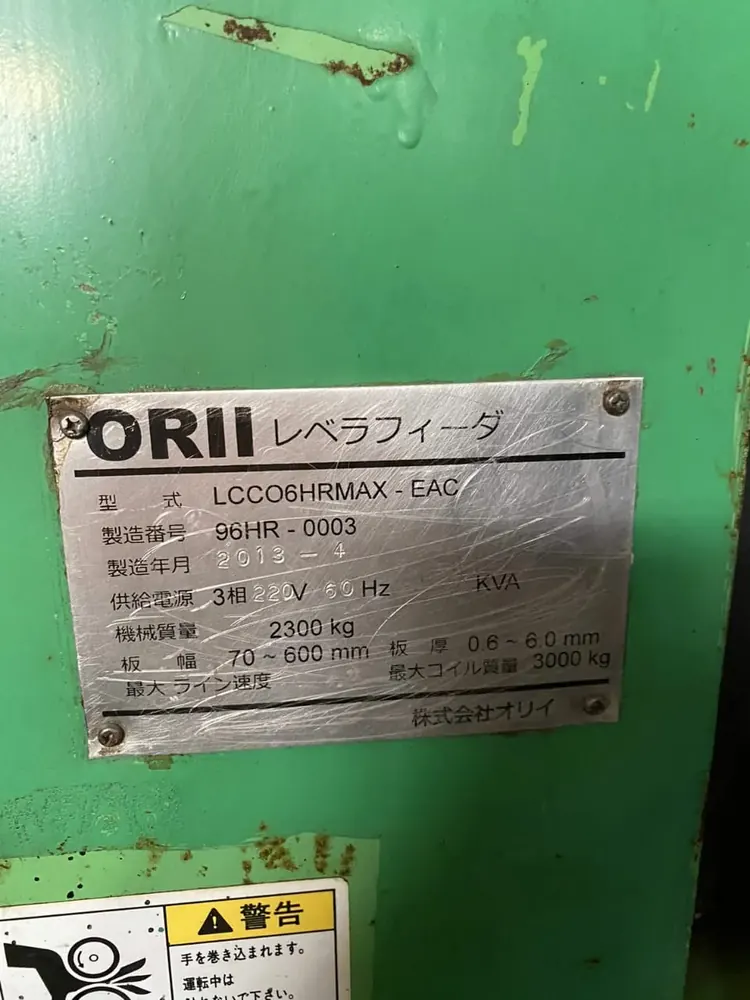

F-01NC levelling feeder

ORII LCC06HRMAX-EAC

Material width: 70–600 mm
Thickness: 0.6–6.0 mm
Max. coil: 3000 kg
Built: 2013

Specification & photos

Specification
Brand	ORII
Type	LCC06HRMAX-EAC
Manufactured	April 2013
Power supply	3-phase 220 V, 50 Hz
Machine weight	2300 kg
Material width	70–600 mm
Material thickness	0.6–6.0 mm
Max. coil weight	3000 kg

1 unit listed Enquire

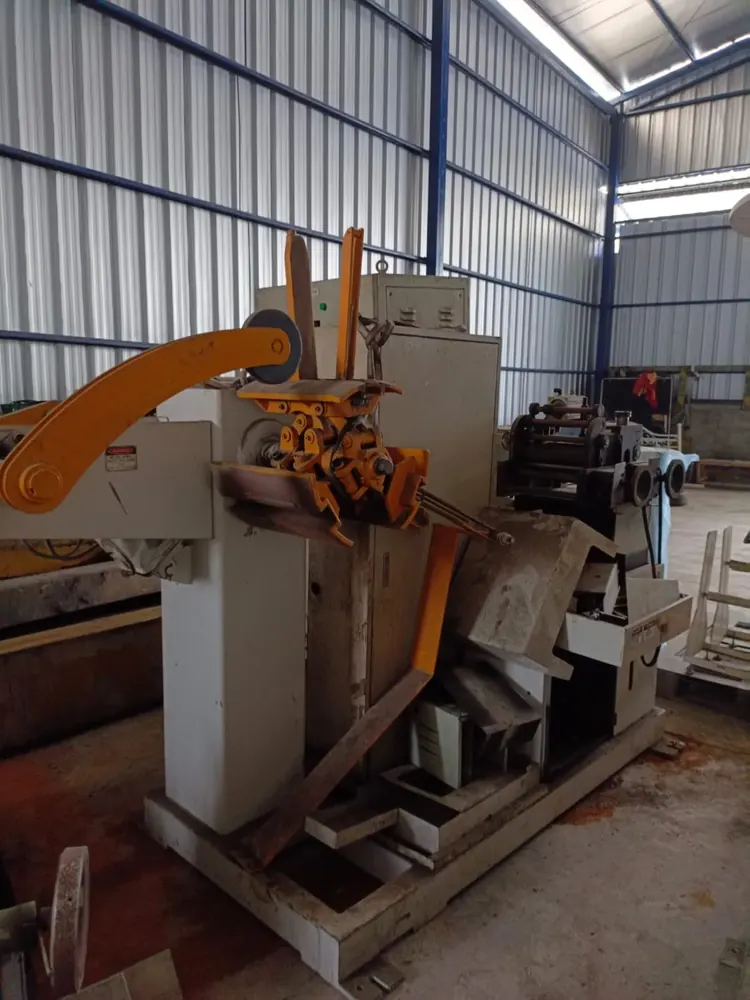

F-02NC feeder

ORII 200

Material width: 300 mm
Thickness: 2.3 mm
Built: 1999
Origin: Japan

Specification & photos

Specification
Brand	ORII
Material width	300 mm
Material thickness	2.3 mm
Manufactured	1999
Made in	Japan

Quantity on request Enquire

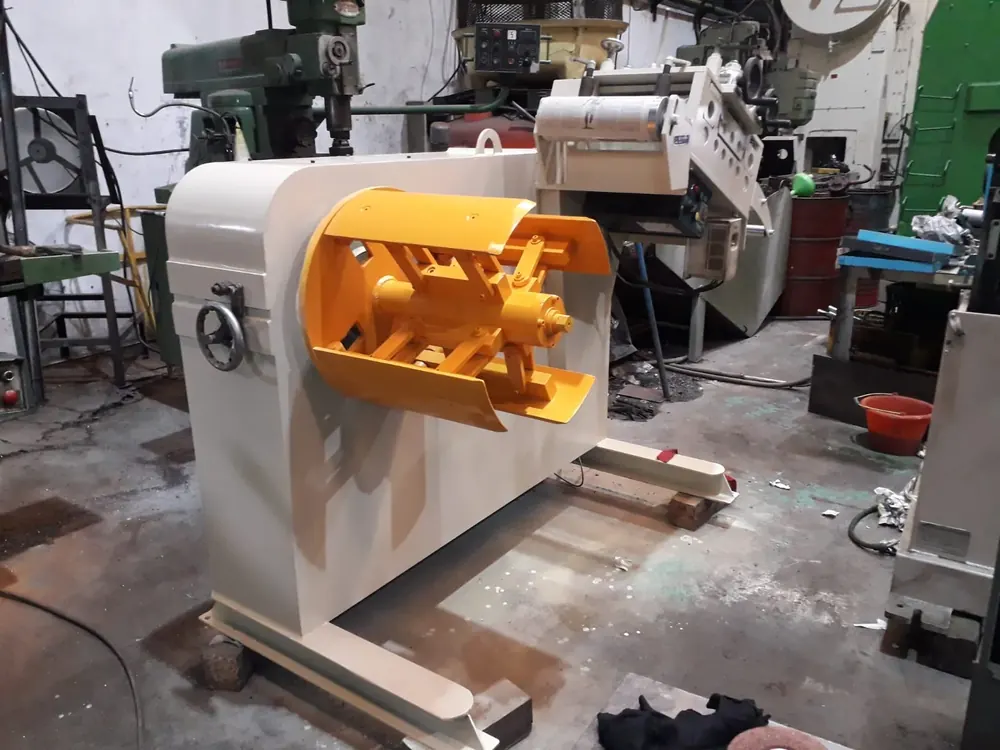

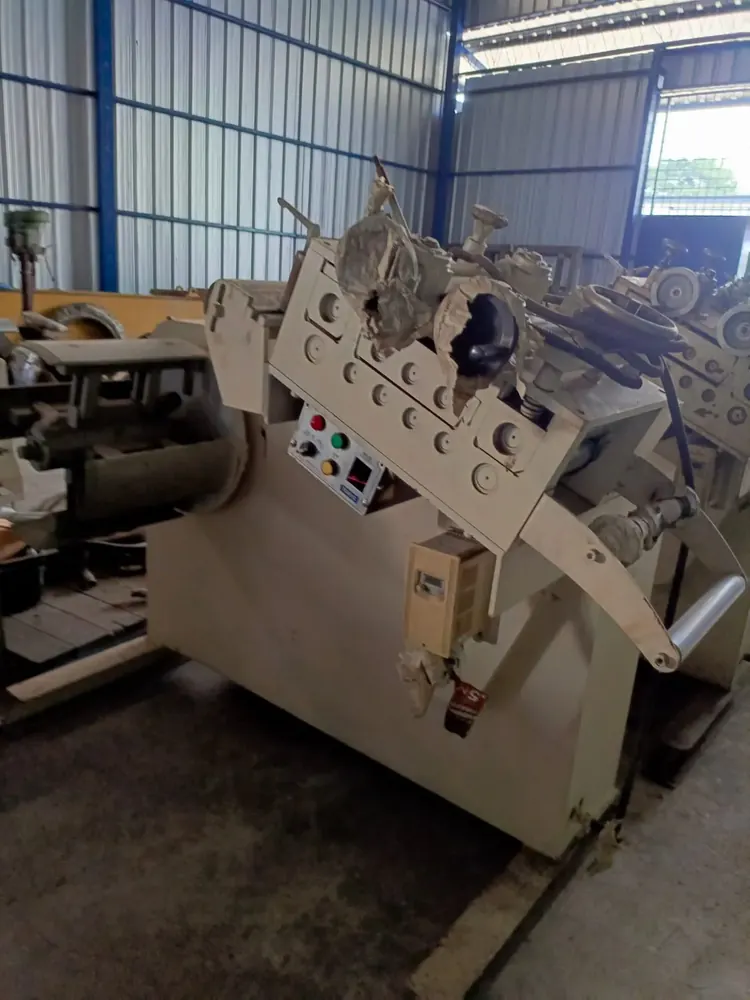

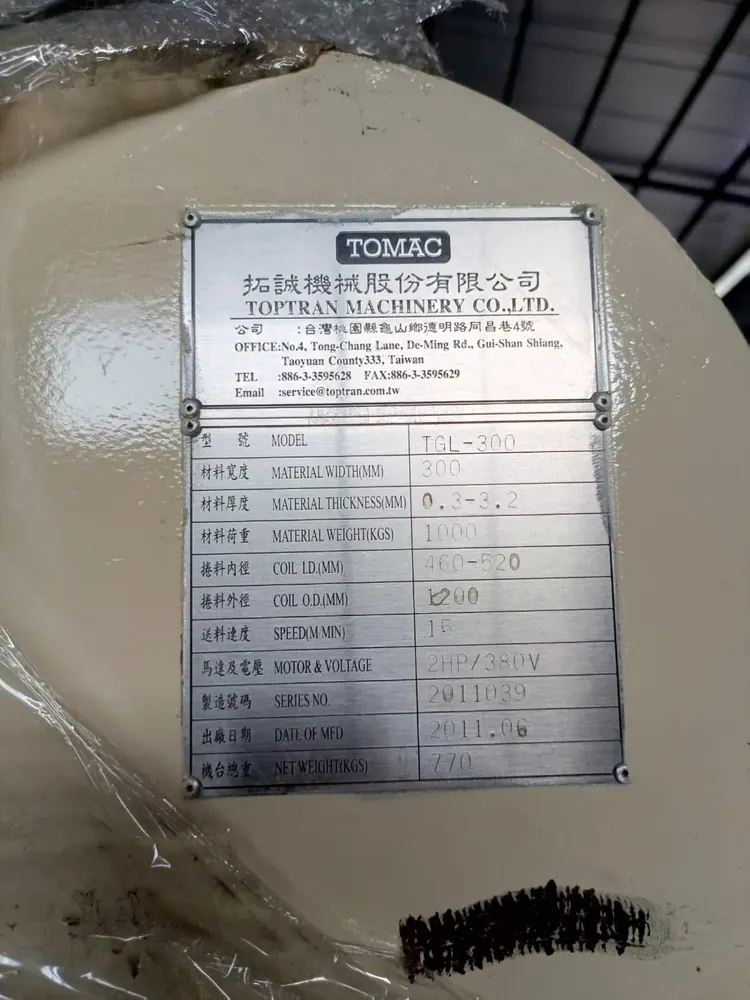

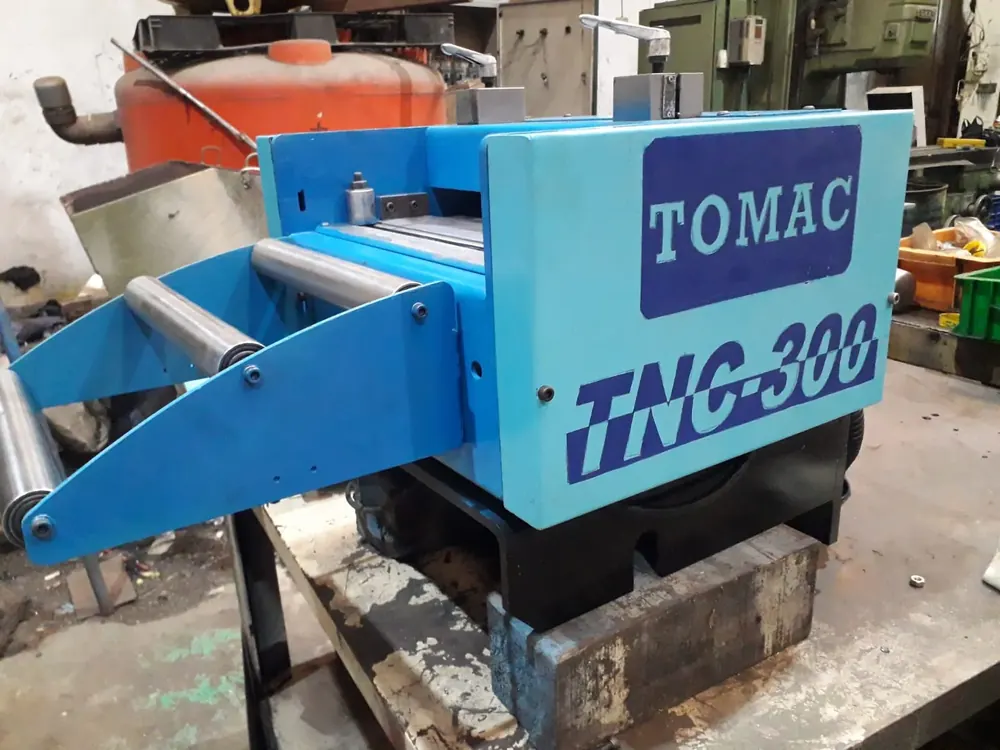

F-03NC feeder, straightener & uncoiler

TOMAC TGL-300

Material width: 300 mm
Thickness: 0.3–3.2 mm
Coil weight: 1000 kg
Speed: 15 m/min

Specification & photos

Specification
Brand	TOMAC
Model	TGL-300
Material width	300 mm
Material thickness	0.3–3.2 mm
Coil weight	1000 kg
Coil I.D.	460–520 mm
Coil O.D.	1200 mm
Speed	15 m/min
Motor & voltage	2 HP / 380 V
Manufactured	June 2011
Net weight	770 kg

3 units listed Enquire

Lathes 3

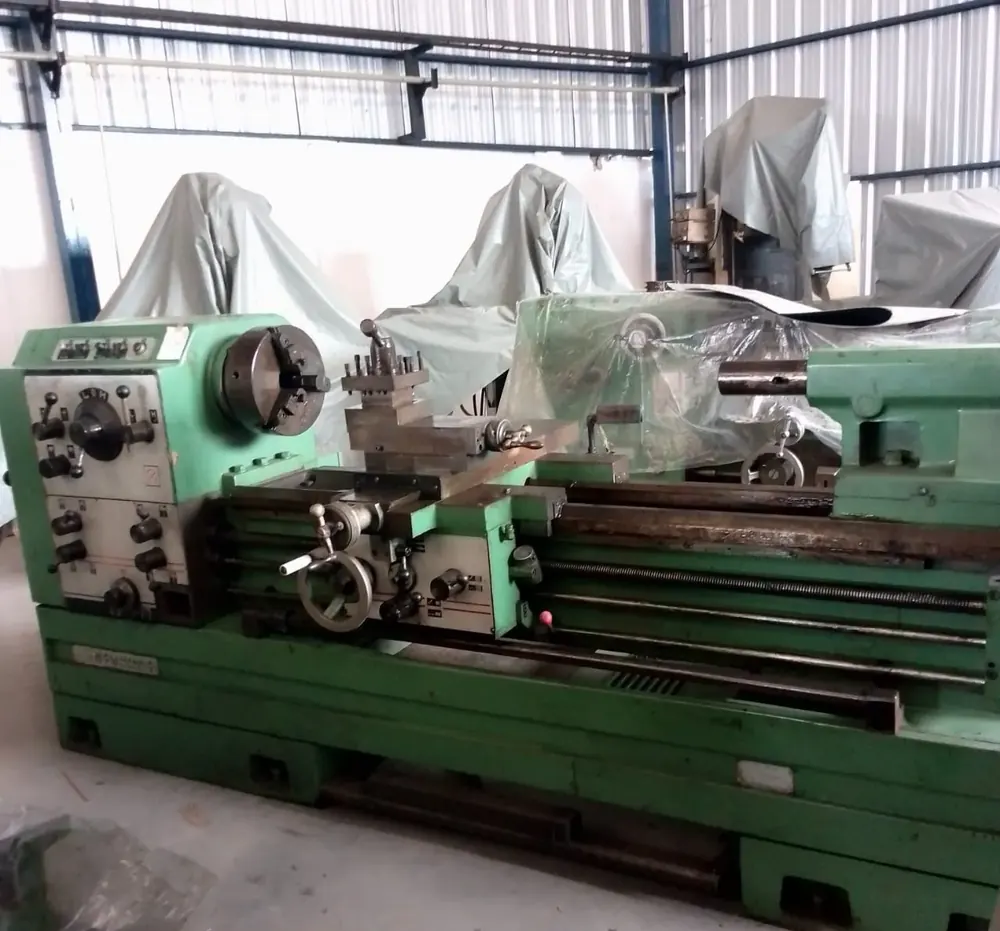

L-01Lathe

Hankook

Working length: 1500 mm
Spindle bore: 80 mm
Built: 2002
Origin: Korea

Specification & photos

Specification
Brand	Hankook
Swing over bed	350 mm
Working area	1500 mm
Swing over carriage	700 mm
Bed width	400 mm
Spindle nose	700 mm
Spindle bore	80 mm
Manufactured	2002
Made in	Korea

1 unit listed Enquire

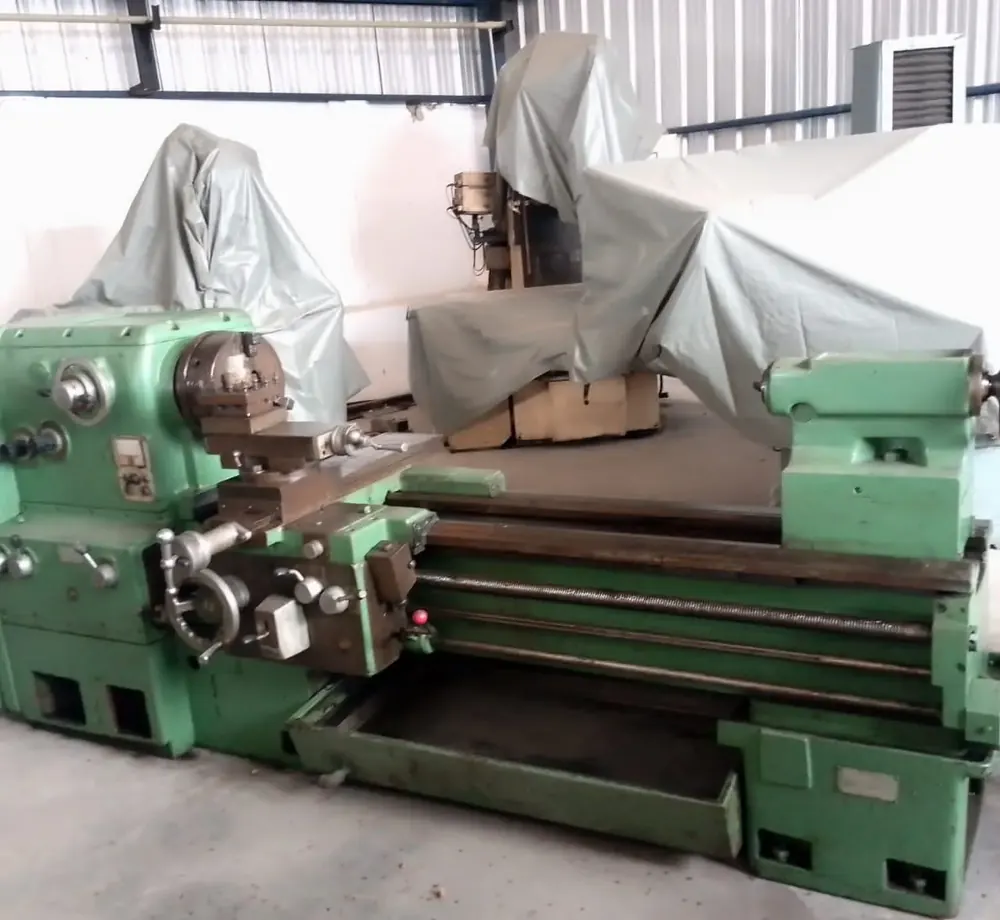

L-02Lathe

Hwacheon

Working length: 1000 mm
Spindle bore: 65 mm
Built: 2002
Origin: Korea

Specification & photos

Specification
Brand	Hwacheon
Swing over bed	250 mm
Working area	1000 mm
Swing over carriage	500 mm
Bed width	350 mm
Spindle nose	520 mm
Spindle bore	65 mm
Manufactured	2002
Made in	Korea

1 unit listed Enquire

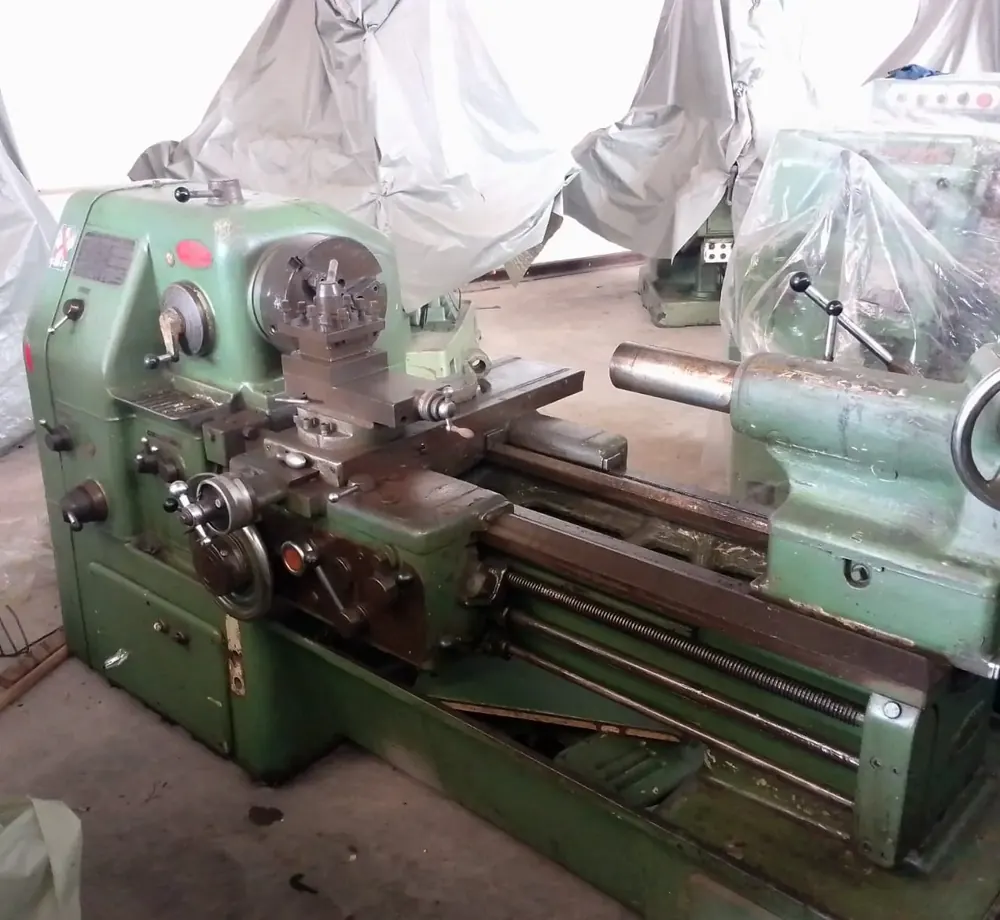

L-03Lathe

Okuma

Working length: 800 mm
Spindle bore: 80 mm
Origin: Japan

Specification & photos

Specification
Brand	Okuma
Swing over bed	250 mm
Working area	800 mm
Swing over carriage	500 mm
Bed width	400 mm
Spindle nose	550 mm
Spindle bore	80 mm
Made in	Japan

1 unit listed Enquire

Milling machines 8

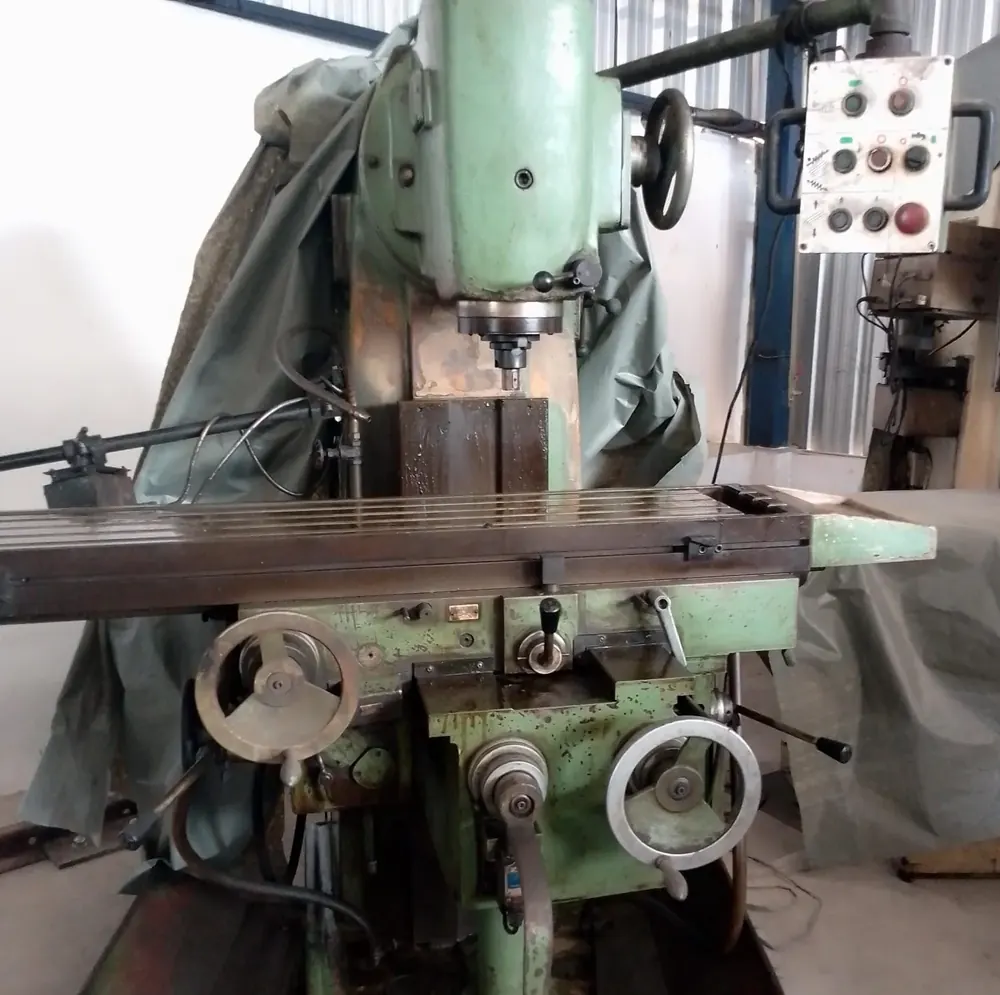

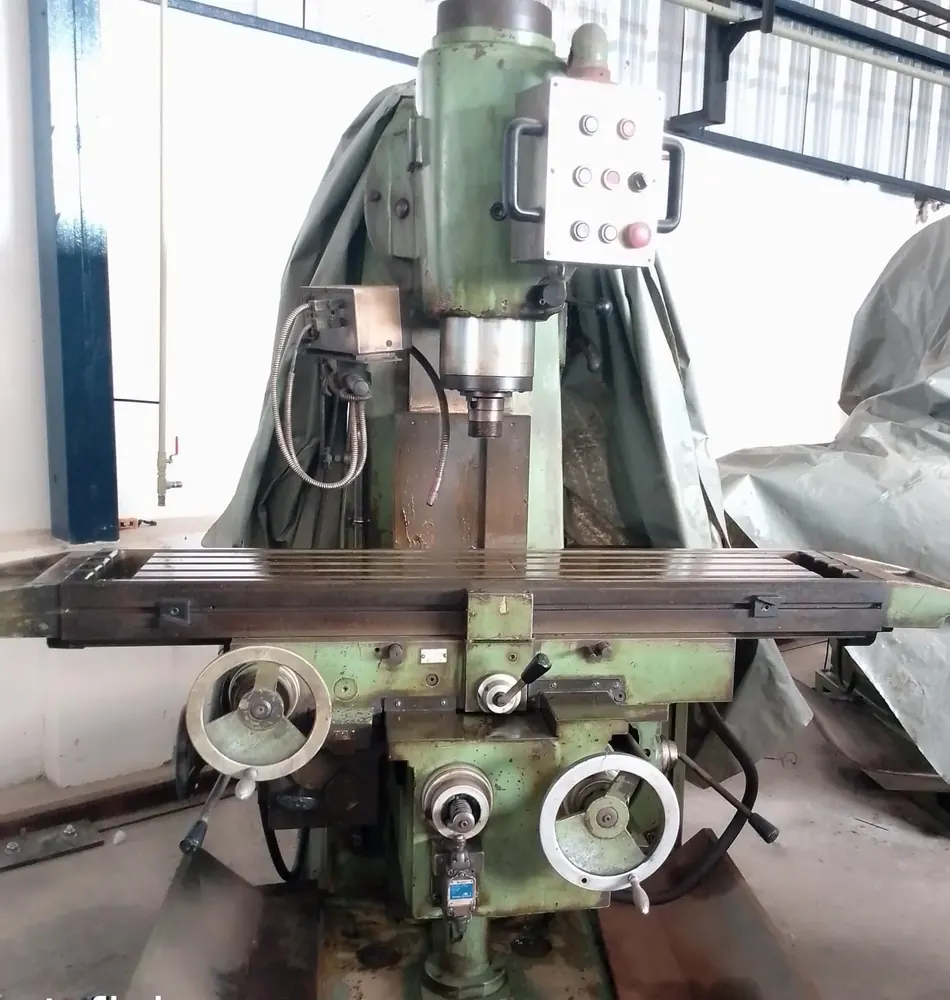

M-01Milling machine

Dahlih

Table: 300 × 1300 mm
Working area: 300 × 900 mm
Built: 1996
Origin: Taiwan

Specification & photos

Specification
Brand	Dahlih
Table	300 × 1300 mm
Working area	300 × 900 mm
Manufactured	1996
Made in	Taiwan

Quantity on request Enquire

M-02Milling machine

Dahlih

Table: 300 × 1300 mm
Working area: 300 × 900 mm
Built: 1996
Origin: Taiwan

Specification & photos

Specification
Brand	Dahlih
Table	300 × 1300 mm
Working area	300 × 900 mm
Manufactured	1996
Made in	Taiwan

1 unit listed Enquire

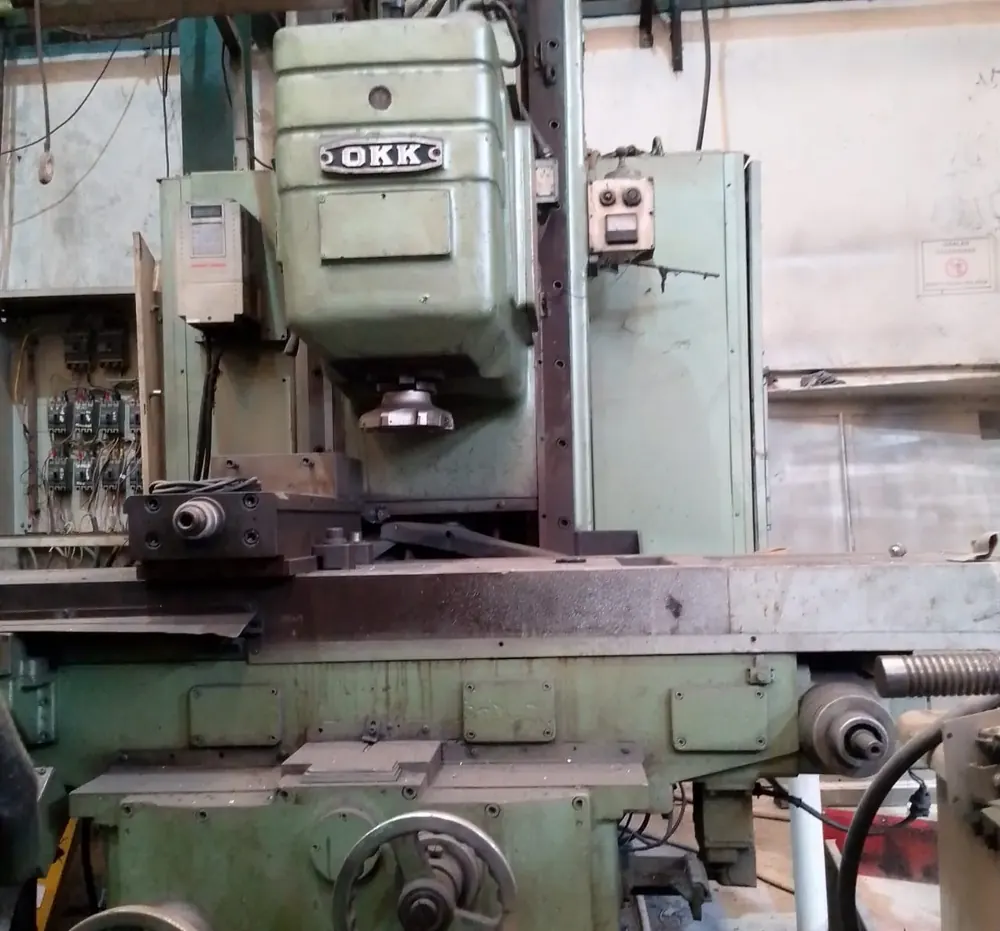

M-03Milling machine

OKK

Table: 450 × 1300 mm
Working area: 450 × 1000 mm
Built: 1982
Origin: Japan

Specification & photos

Specification
Brand	OKK
Table	450 × 1300 mm
Working area	450 × 1000 mm
Manufactured	1982
Made in	Japan

Quantity on request Enquire

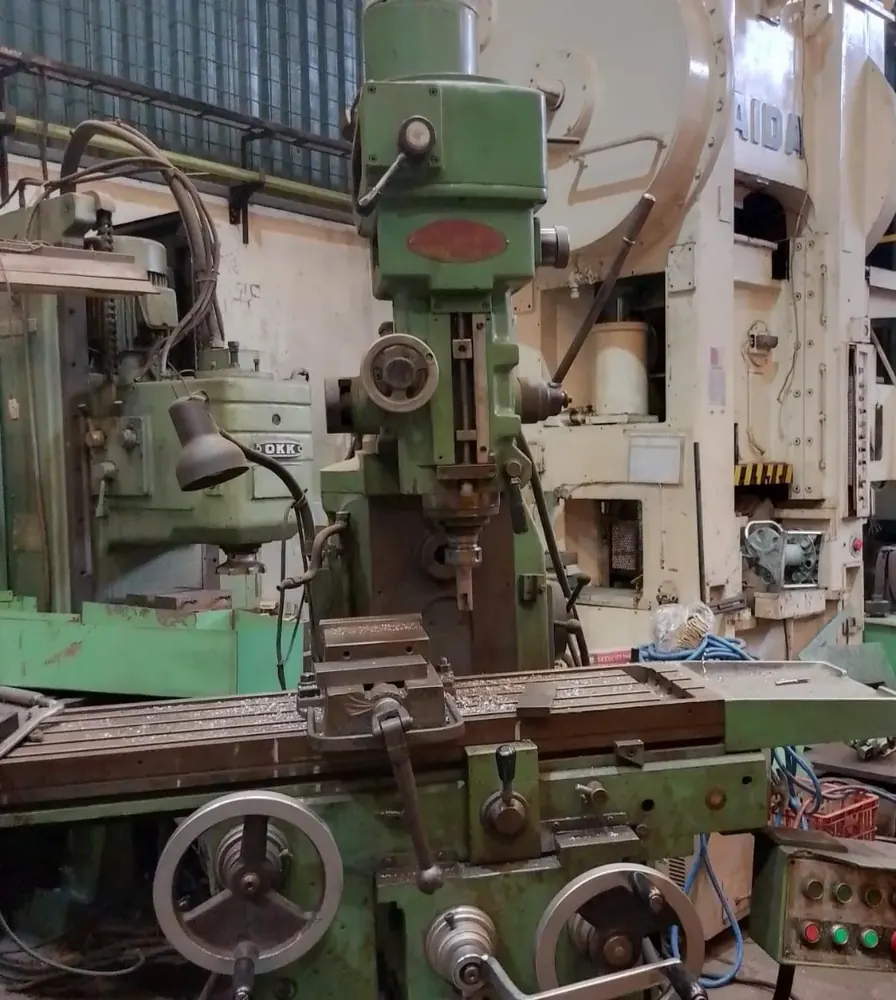

M-04Milling machine

Pyung Hwa

Table: 300 × 1250 mm
Working area: 300 × 800 mm
Built: 2002
Origin: Korea

Specification & photos

Specification
Brand	Pyung Hwa
Table	300 × 1250 mm
Working area	300 × 800 mm
Manufactured	2002
Made in	Korea

Quantity on request Enquire

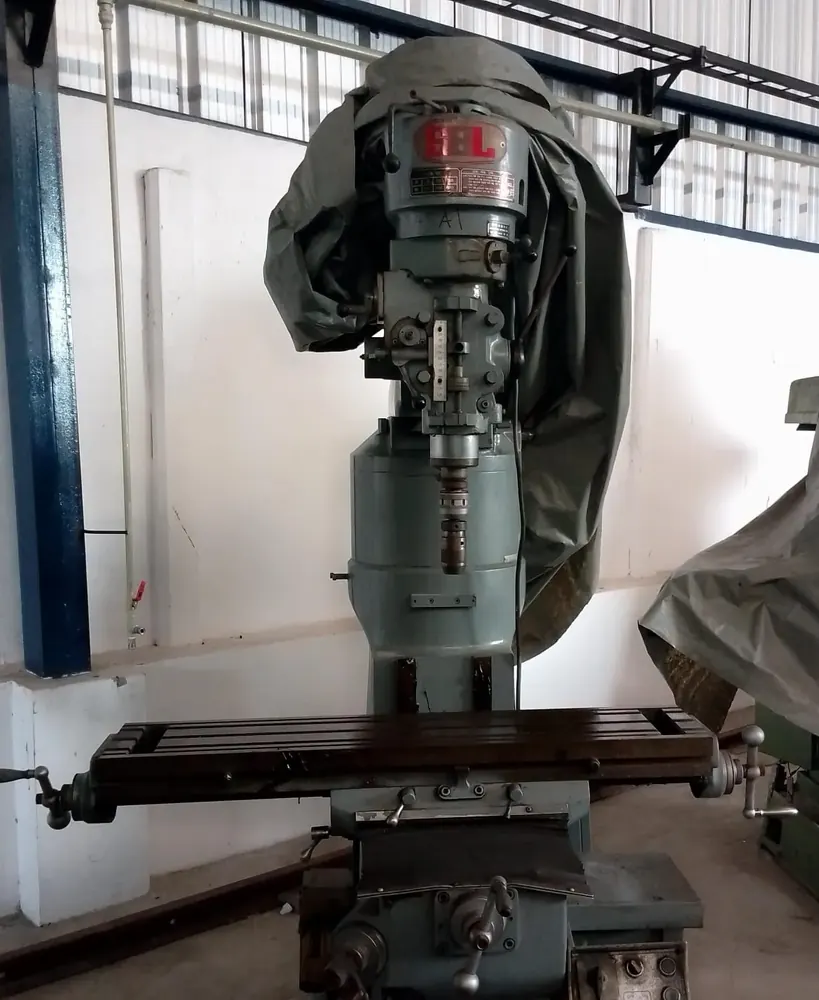

M-05Milling machine

SBL

Table: 230 × 1070 mm
Working area: 230 × 600 mm
Built: 2002
Origin: Taiwan

Specification & photos

Specification
Brand	SBL
Table	230 × 1070 mm
Working area	230 × 600 mm
Manufactured	2002
Made in	Taiwan

Quantity on request Enquire

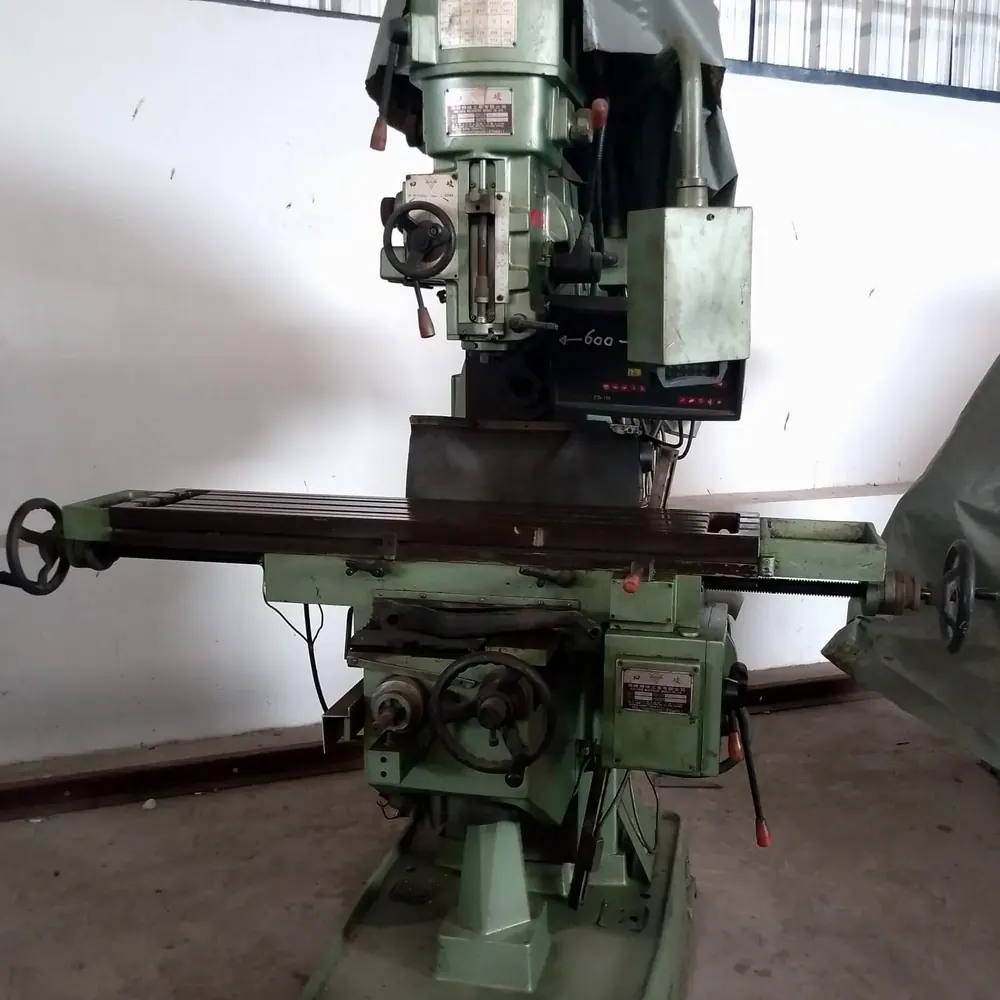

M-06Milling machine

Ssu-Chun

Table: 260 × 1200 mm
Working area: 260 × 1200 mm
Built: 1994
Origin: Taiwan

Specification & photos

Specification
Brand	Ssu-Chun
Table	260 × 1200 mm
Working area	260 × 1200 mm
Manufactured	1994
Made in	Taiwan

Quantity on request Enquire

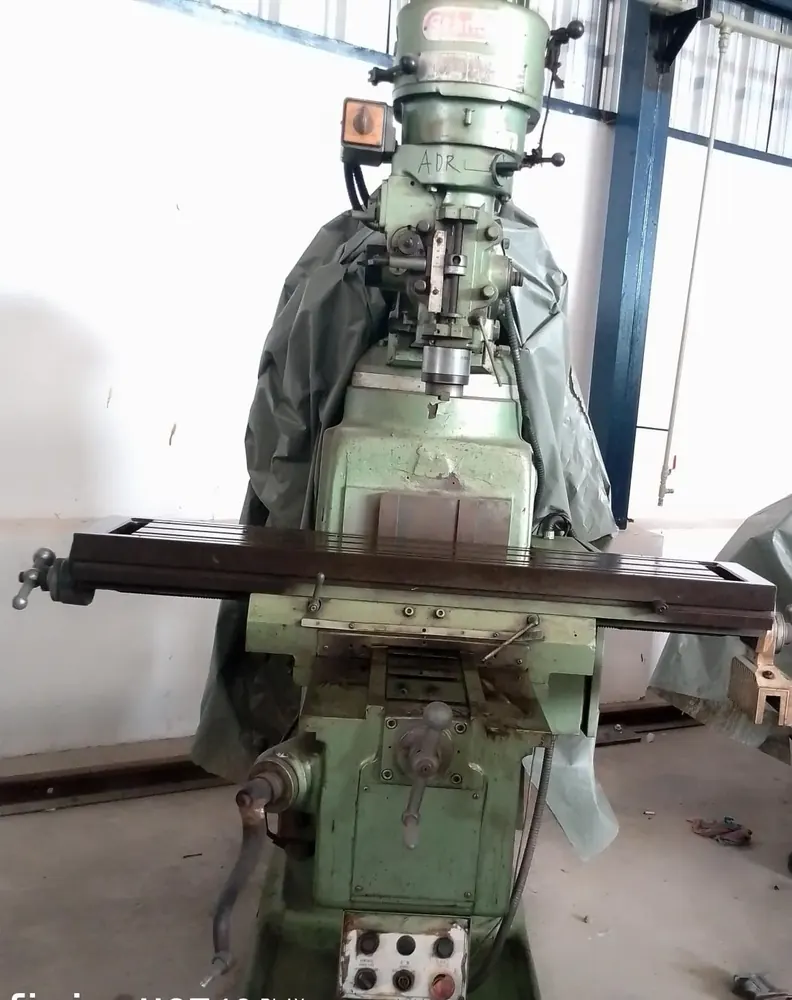

M-07Milling machine

Standar

Table: 250 × 1270 mm
Working area: 250 × 800 mm
Origin: China

Specification & photos

Specification
Brand	Standar
Table	250 × 1270 mm
Working area	250 × 800 mm
Made in	China

Quantity on request Enquire

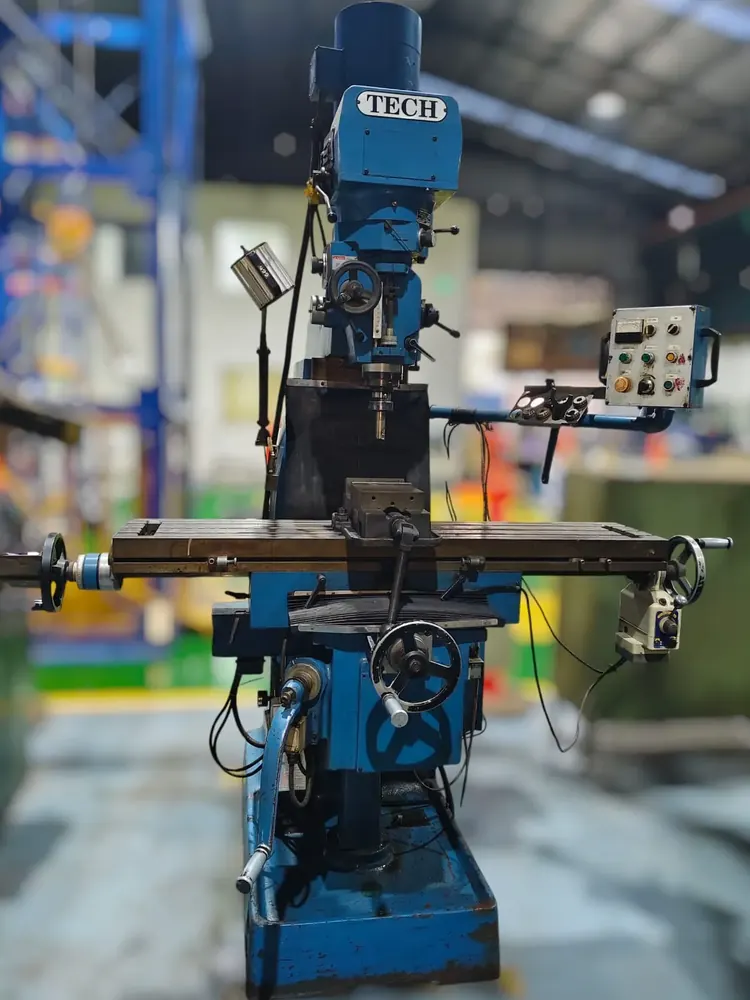

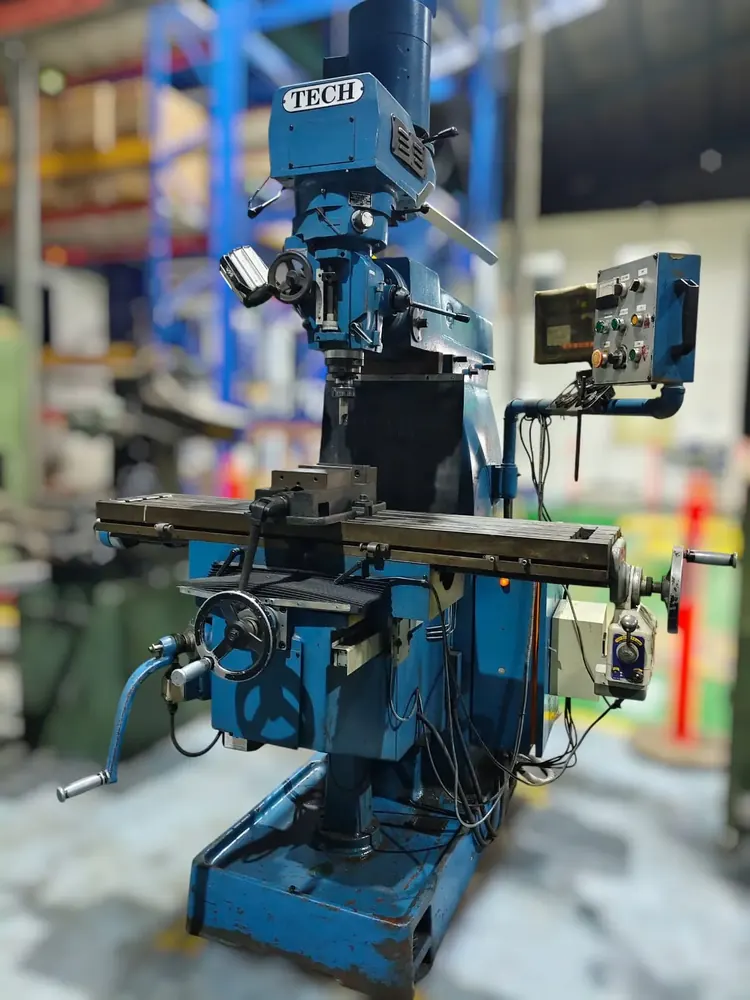

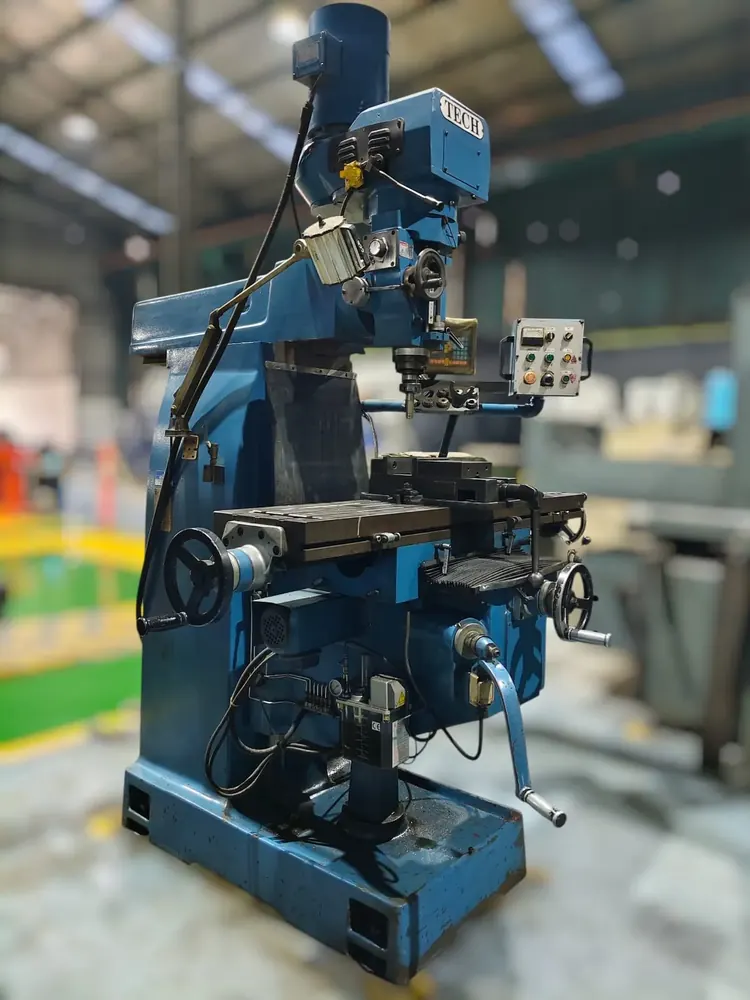

M-08Milling machine

TECH

Table: 280 × 1300 mm
Working area: 280 × 800 mm
Built: 2014
Origin: Taiwan

Specification & photos

Specification
Brand	TECH
Table	280 × 1300 mm
Working area	280 × 800 mm
Manufactured	2014
Made in	Taiwan

1 unit listed Enquire

Machining centres 1

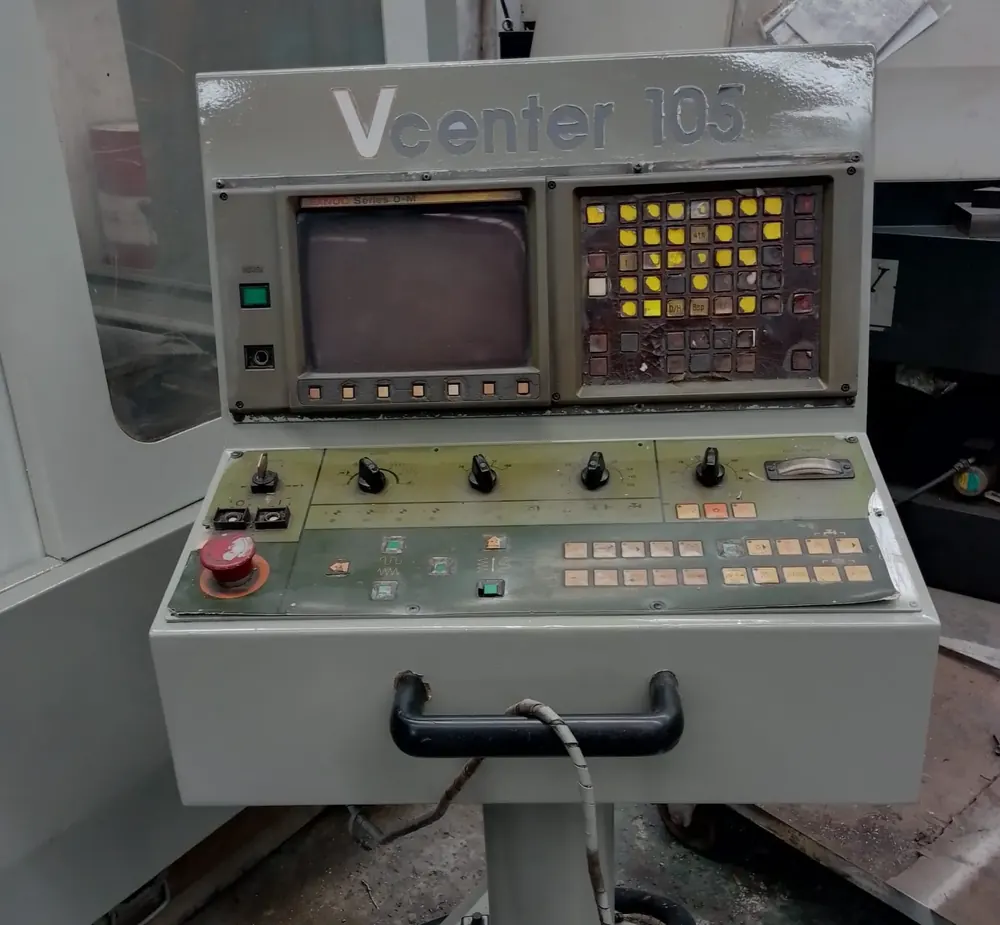

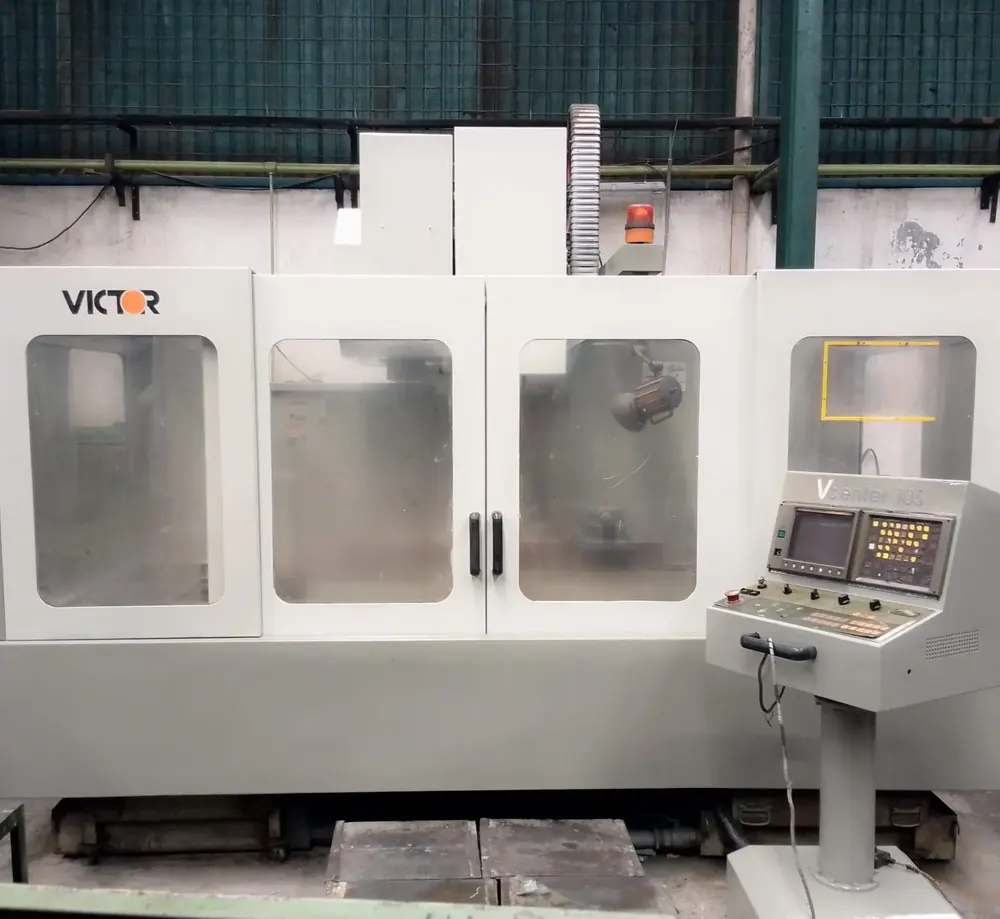

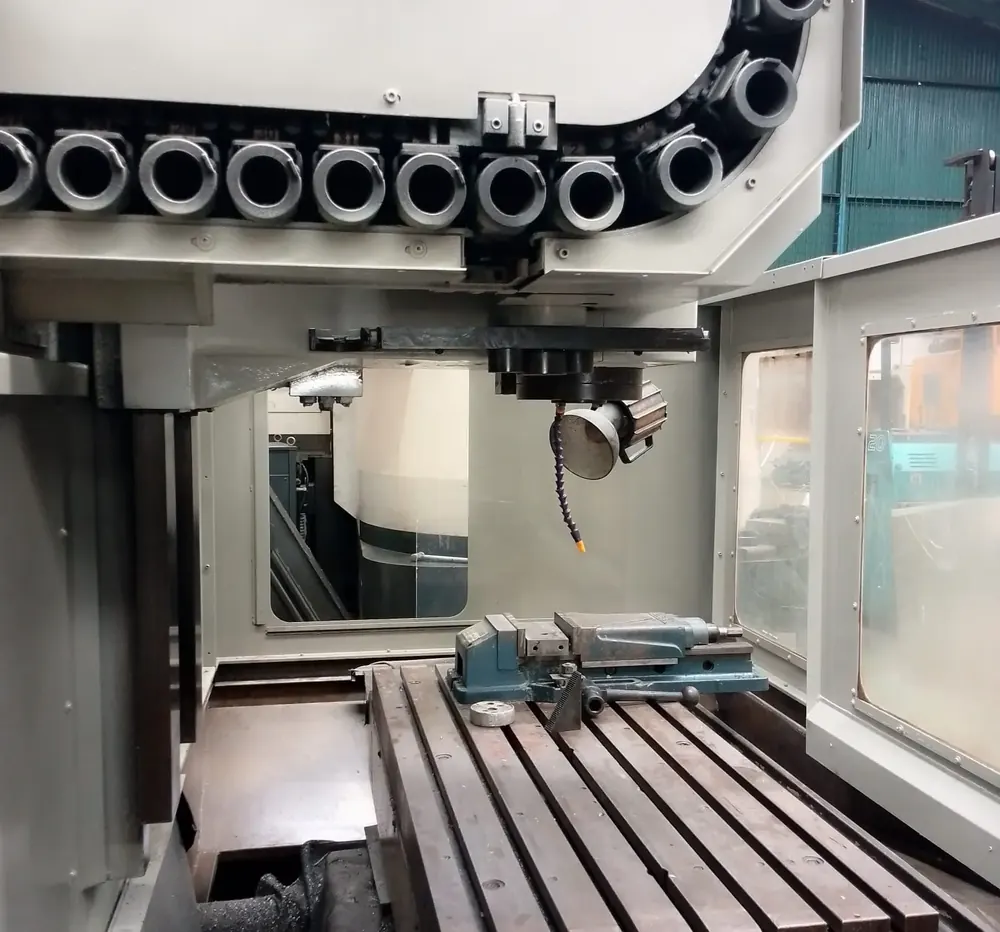

C-01Vertical machining centre

Victor Vcenter-105

Control: Fanuc 0-MC
Total power: 20 kW
Built: 2010
Origin: Taiwan

Specification & photos

Specification
Brand	Victor
Model	Vcenter-105
CNC control	Fanuc 0-MC
Line voltage	AC 380 V, 3-phase
Frequency	50 / 60 Hz
Total power	20 kW
Secondary voltage	AC 220 V
Manufactured	April 2010
Made in	Taiwan

Quantity on request Enquire

Shearing 1

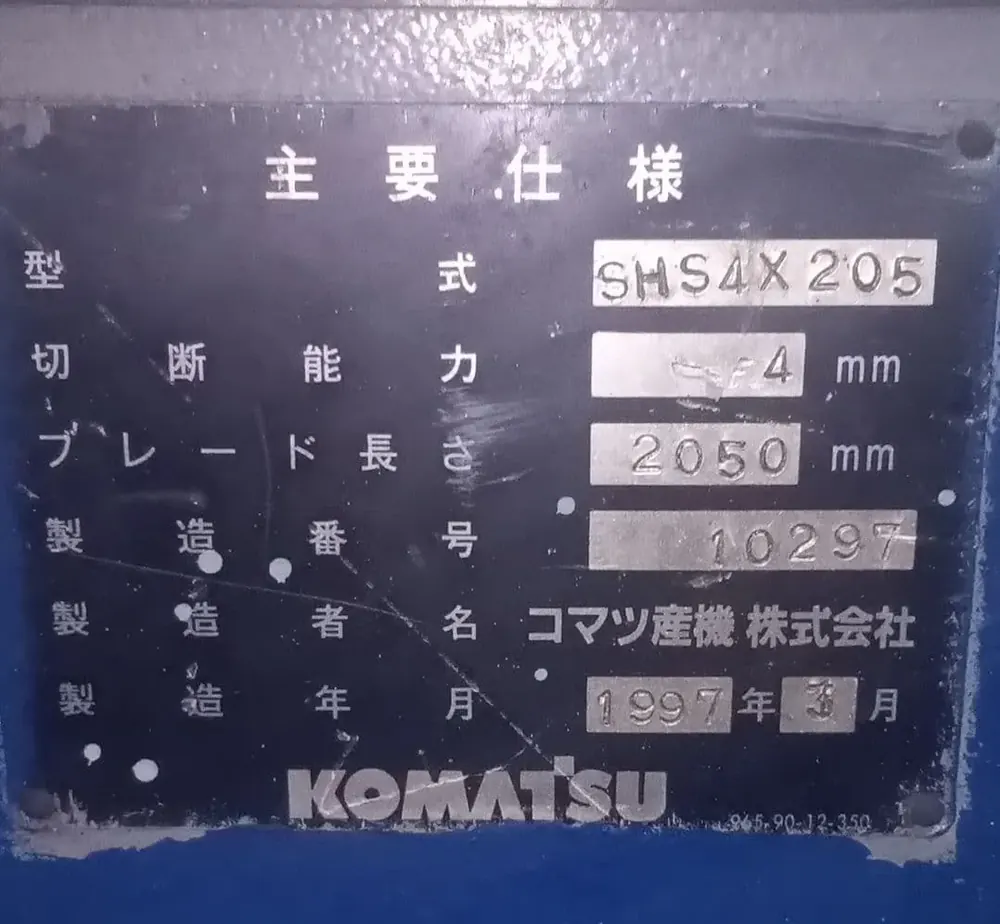

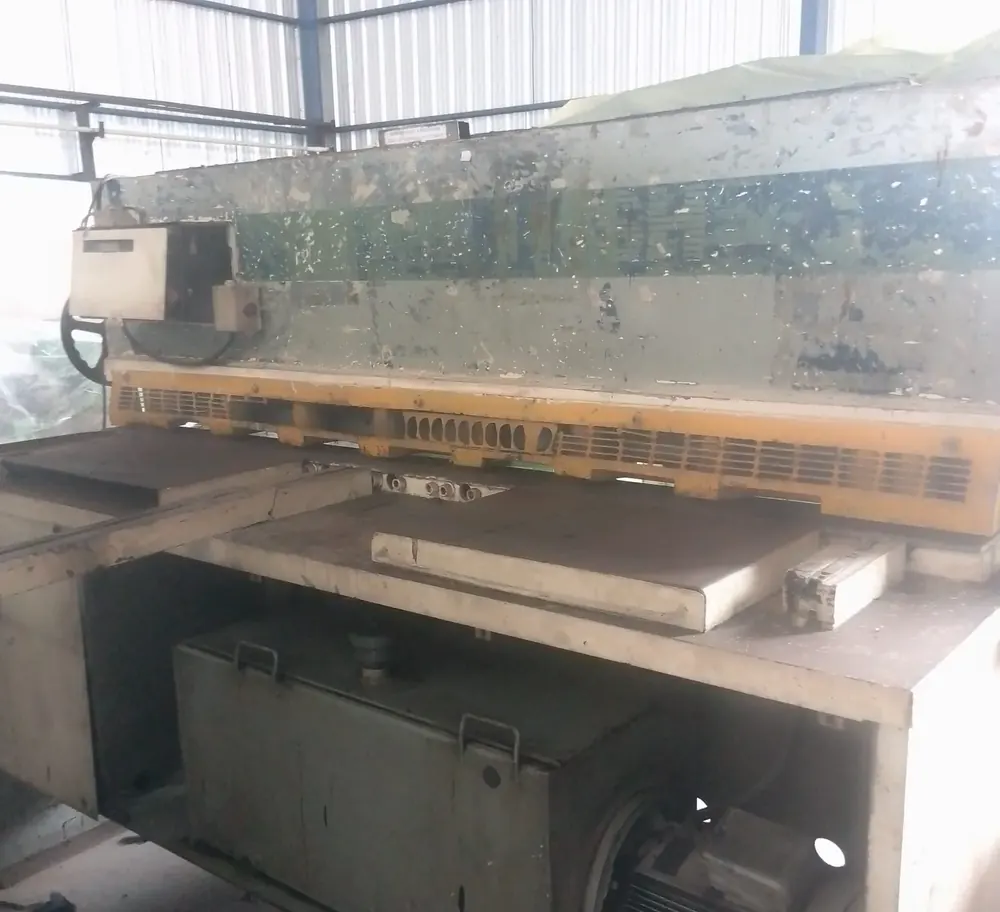

S-01Shearing machine

Komatsu SH4X205

Max. material: 4 mm
Cutting length: 2050 mm
Built: 1997

Specification & photos

Specification
Brand	Komatsu
Model	SH4X205
Max. material thickness	4 mm
Cutting length	2050 mm
Manufactured	March 1997

Quantity on request Enquire

Surface grinders 2

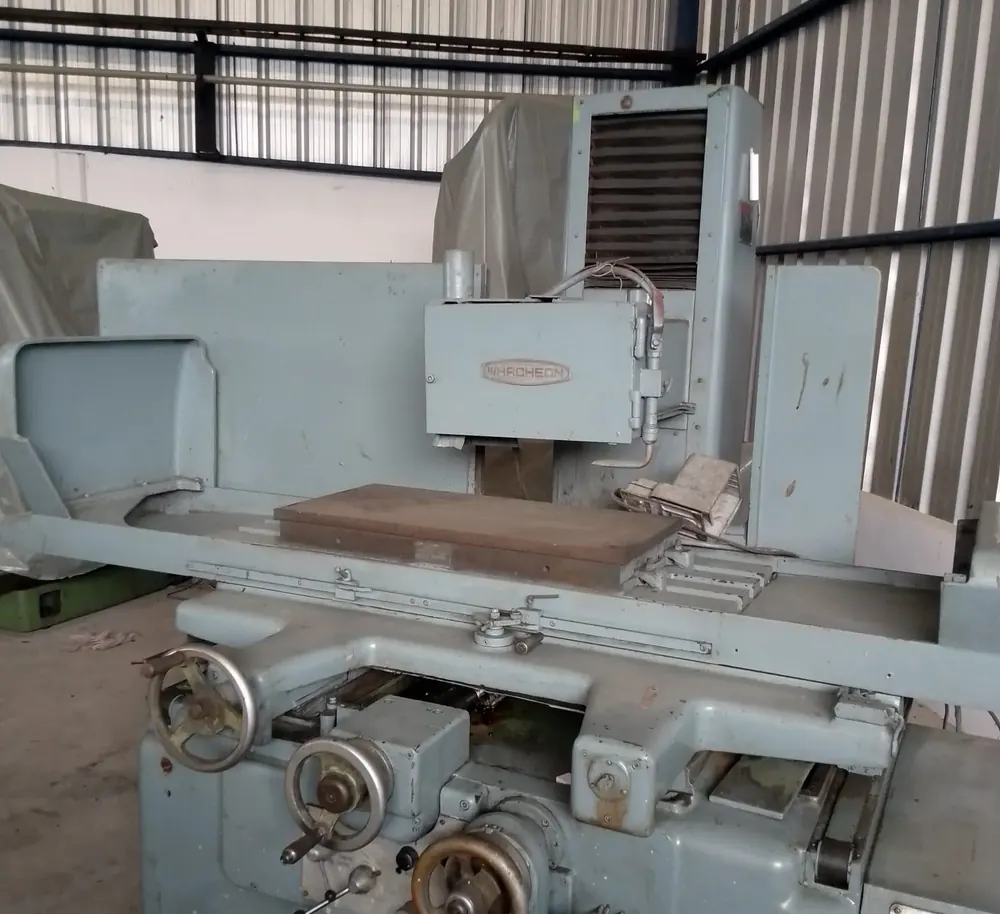

G-01Surface grinder

Hwacheon

Table: 400 × 800 mm
Built: 2002
Origin: Korea

Specification & photos

Specification
Brand	Hwacheon
Table	400 × 800 mm
Manufactured	2002
Made in	Korea

Quantity on request Enquire

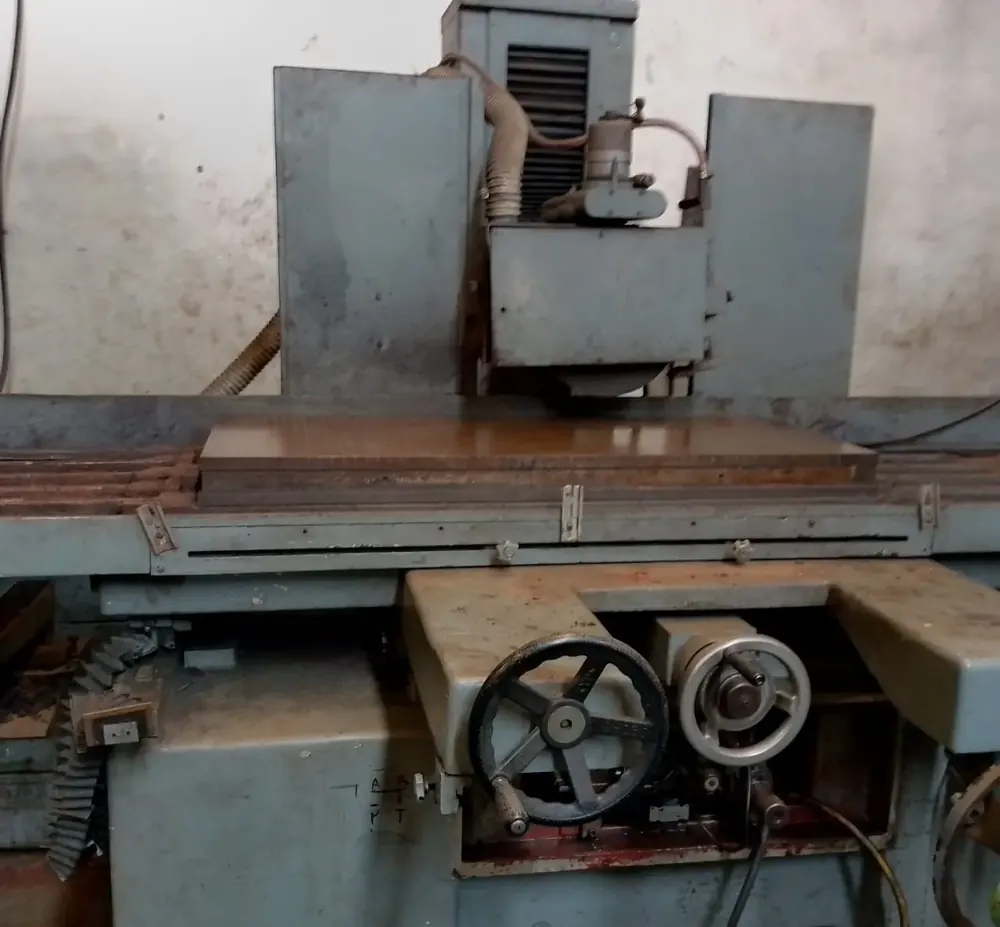

G-02Surface grinder

Woojin

Table: 500 × 1200 mm
Built: 2002
Origin: Korea

Specification & photos

Specification
Brand	Woojin
Table	500 × 1200 mm
Manufactured	2002
Made in	Korea

Quantity on request Enquire

Spare parts & tooling 5

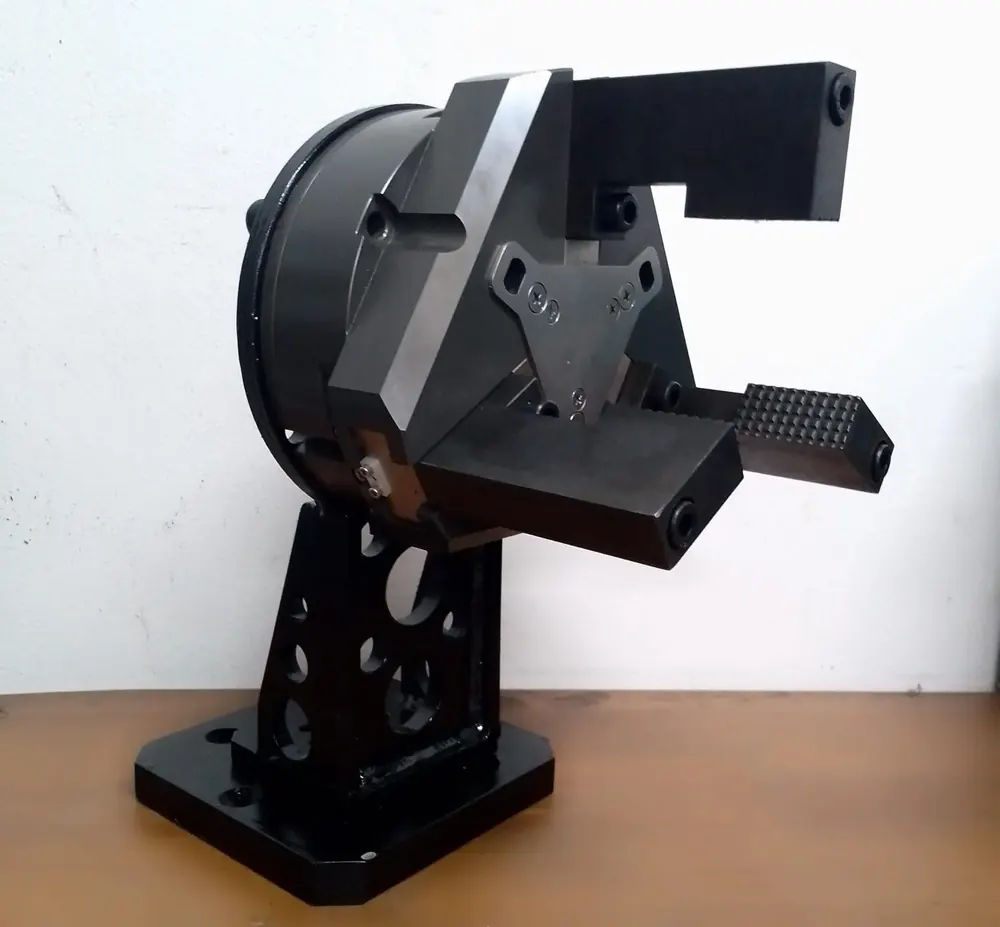

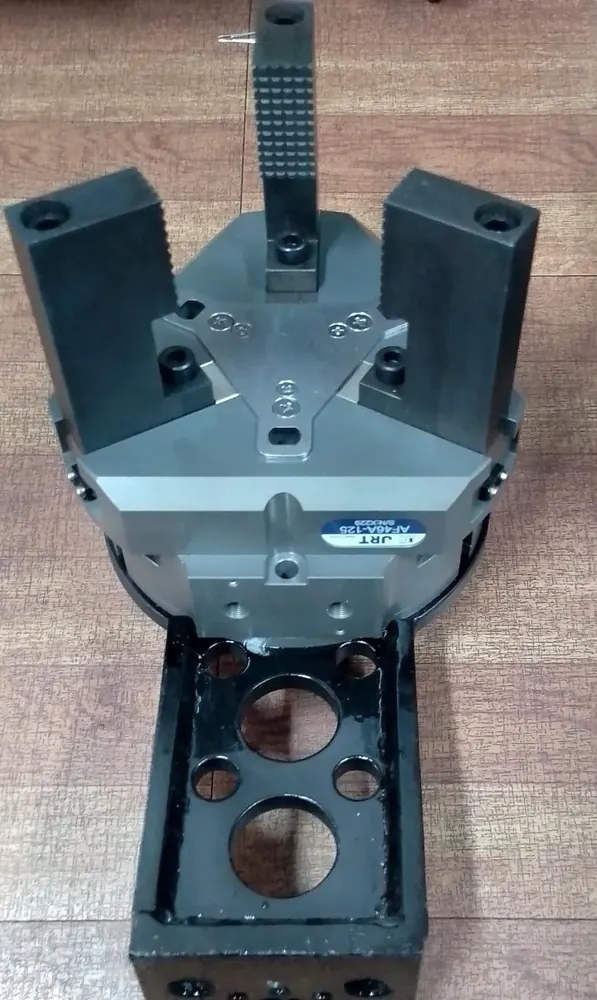

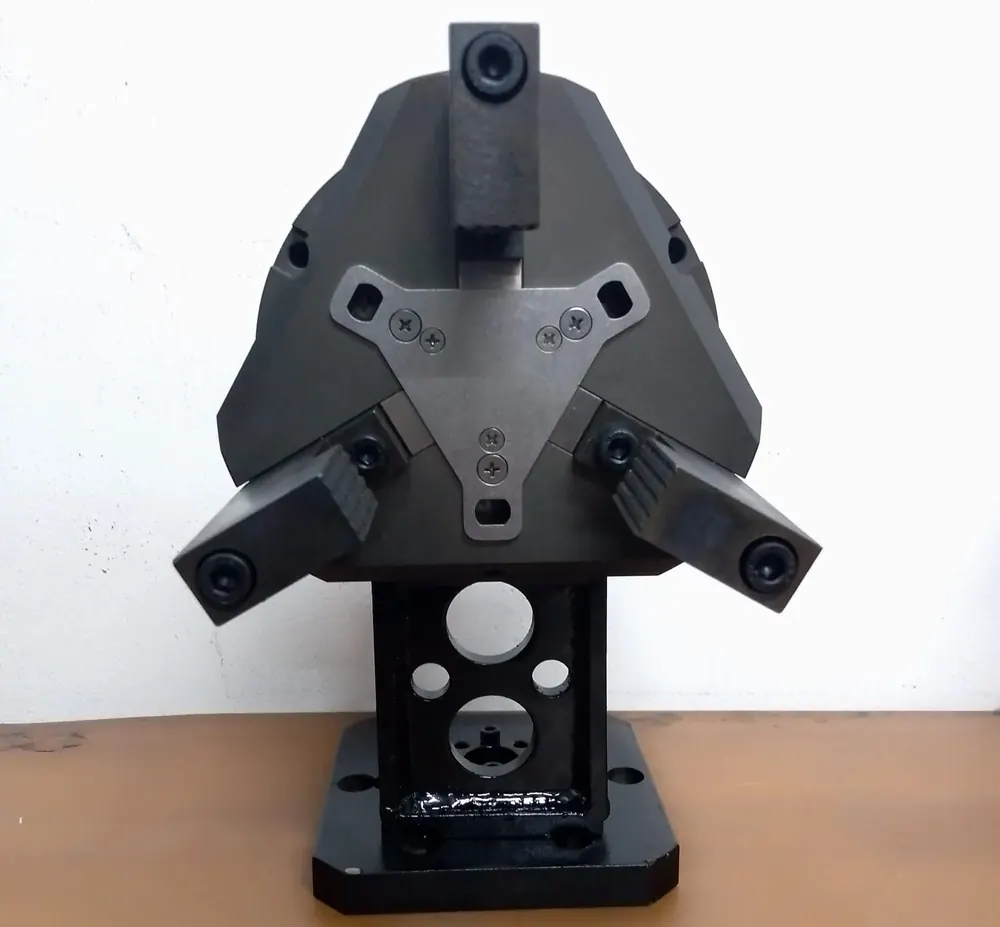

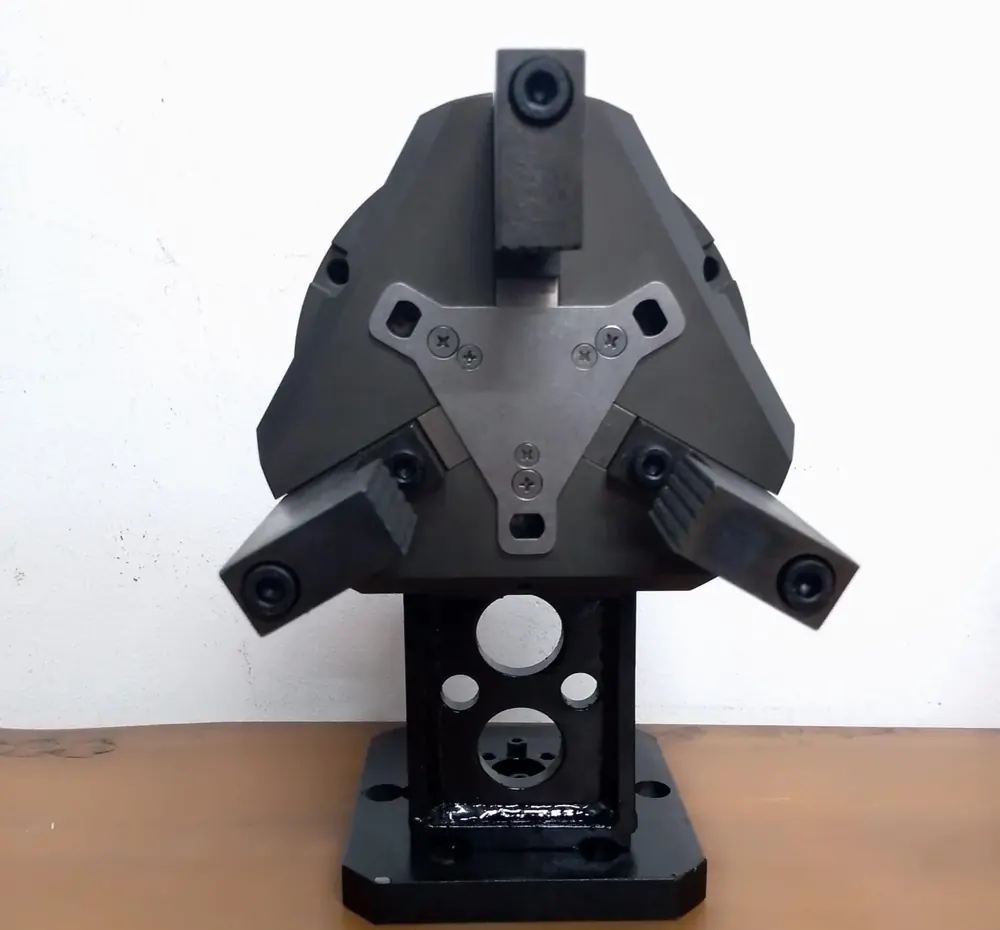

X-01Robot gripper

JRT AF46A-125

Status: Ready

Specification & photos

Specification
Brand	JRT
Model	AF46A-125

Quantity on request Enquire

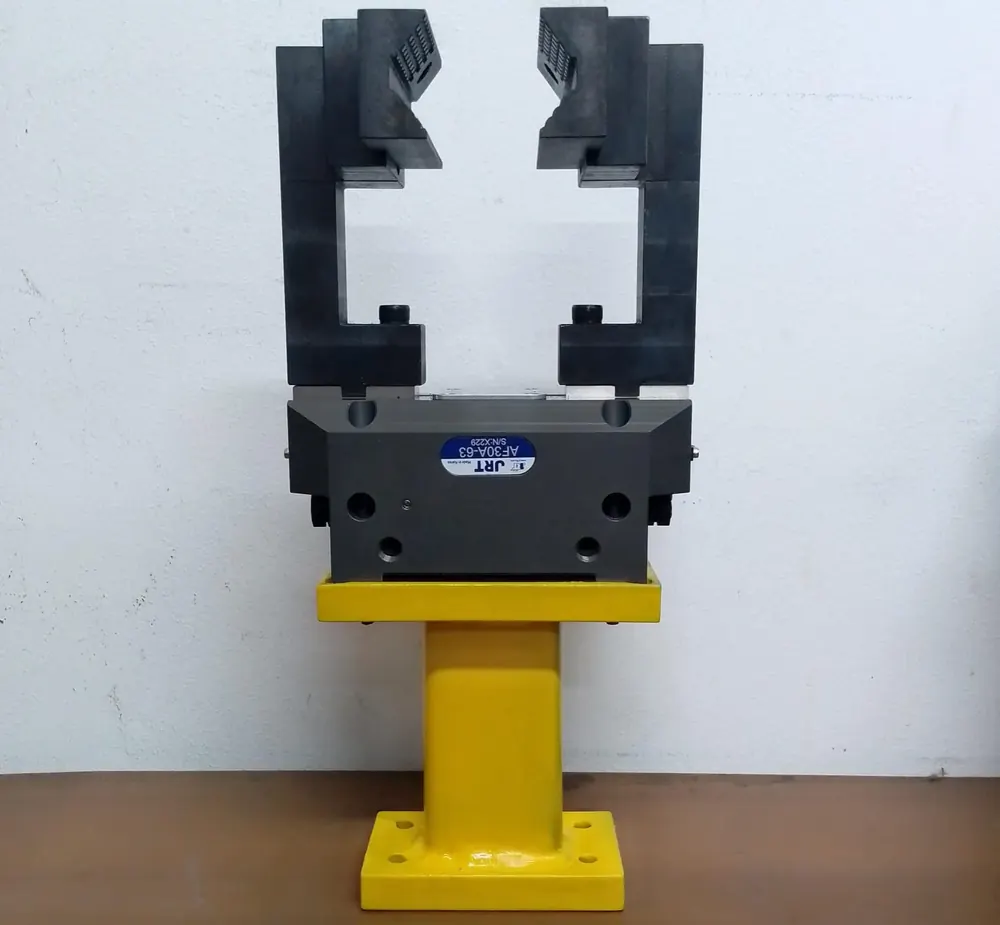

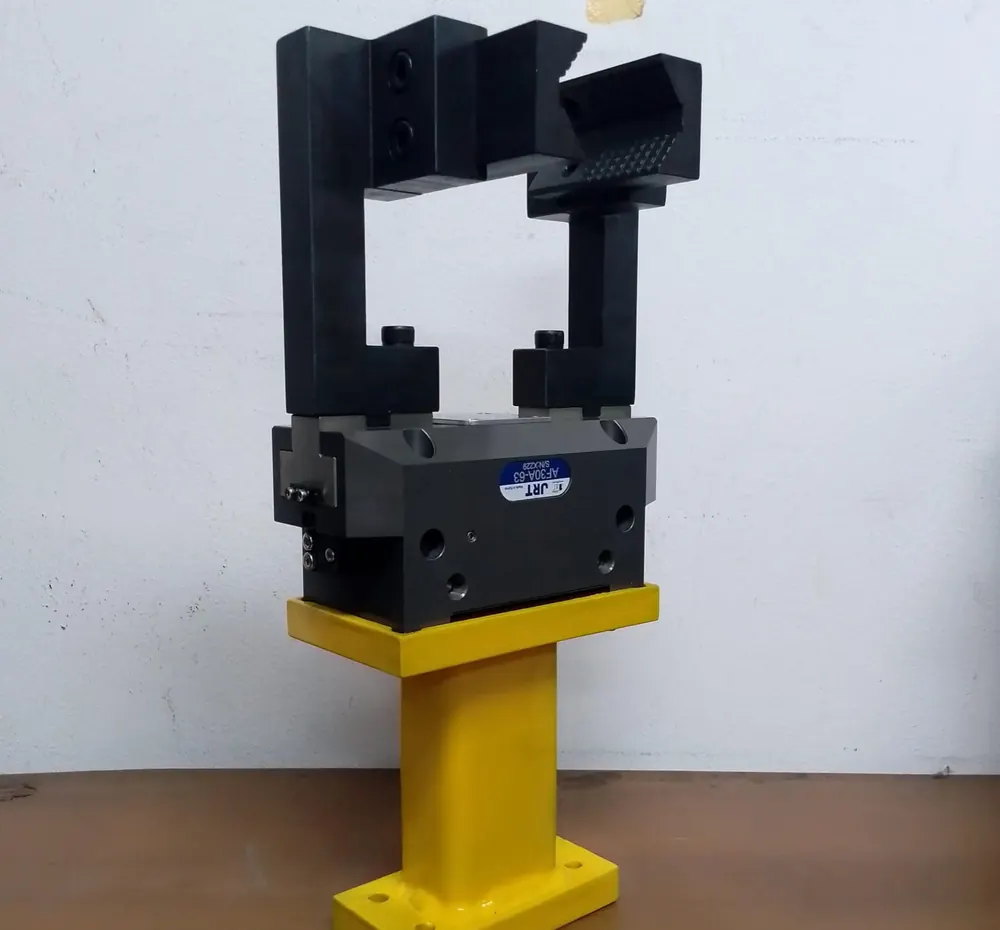

X-02Robot gripper

JRT AF30-60

Status: Ready

Specification & photos

Specification
Brand	JRT
Model	AF30-60

Quantity on request Enquire

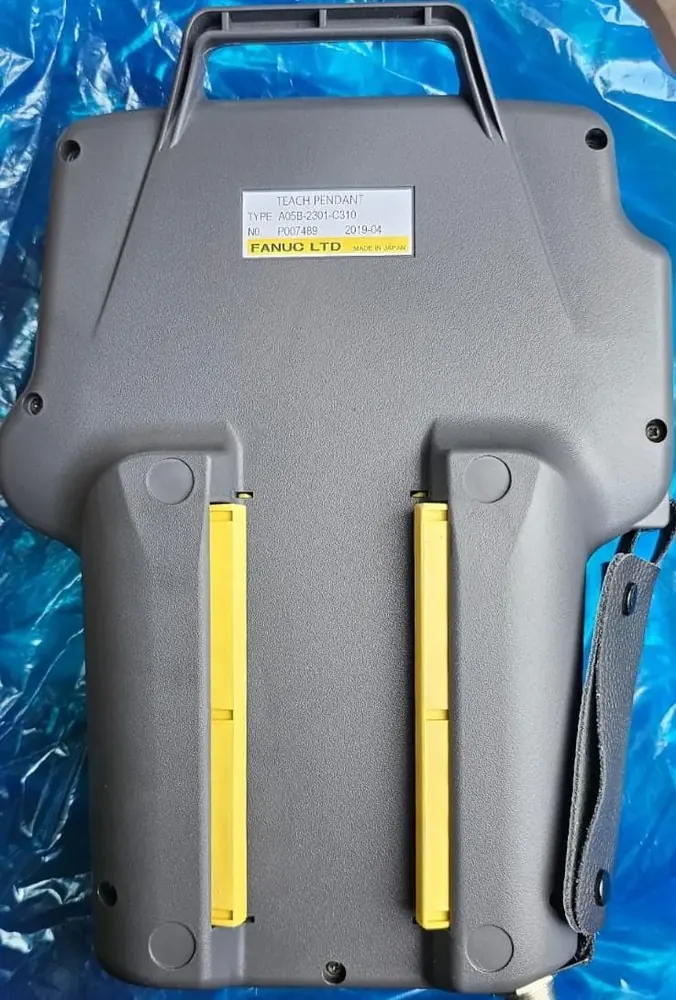

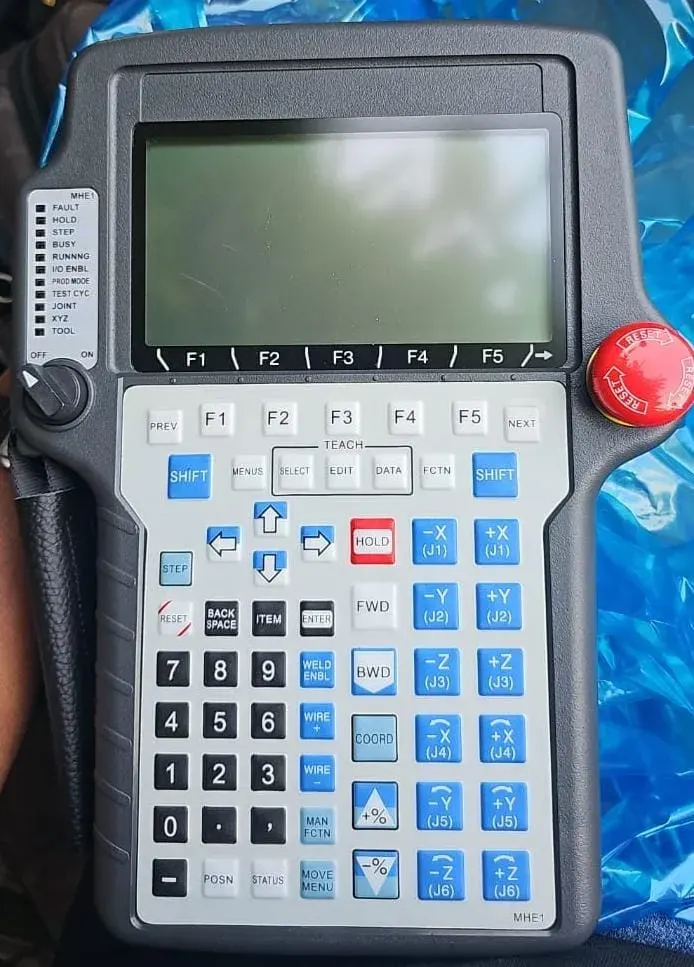

X-03Robot teach pendant

FANUC A05B-2301-C310

Specification & photos

Specification
Brand	FANUC
Type	A05B-2301-C310

Quantity on request Enquire

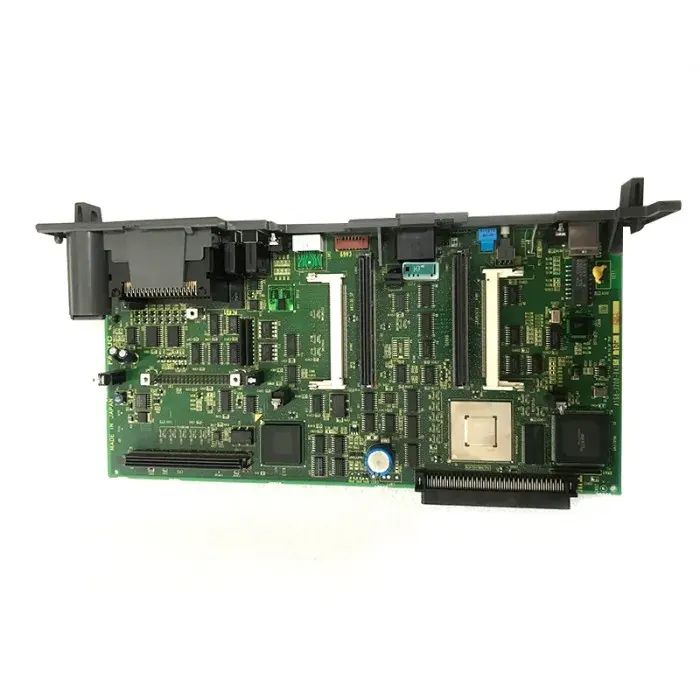

X-04Control spare

Mainboard

Photos

Specification on request.

Quantity on request Enquire

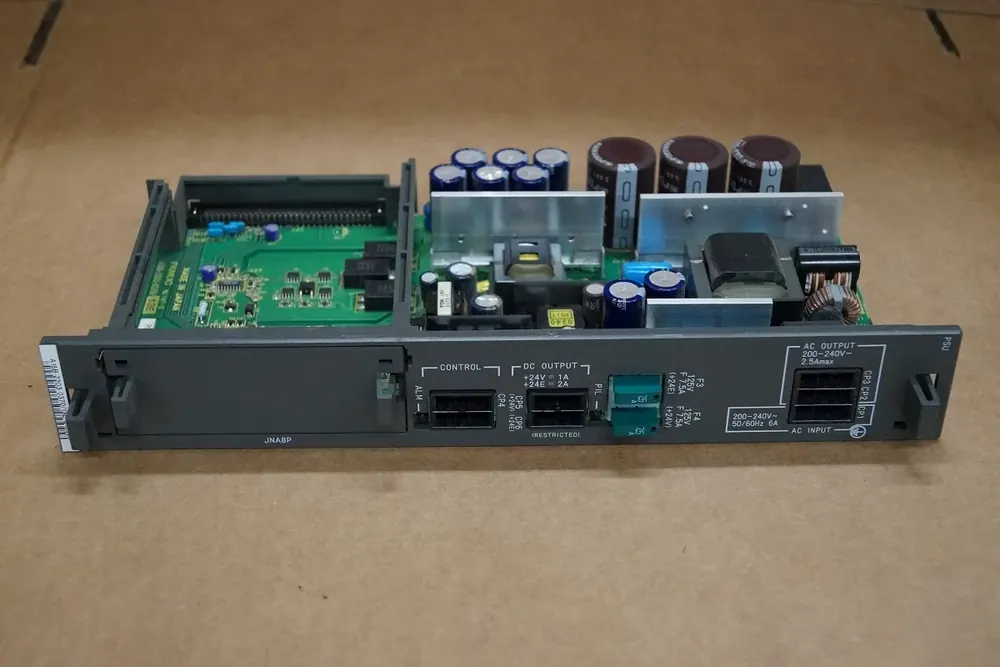

X-05Control spare

Power supply unit

Photos

Specification on request.

Quantity on request Enquire

Stock changes. Listings are subject to prior sale, and we confirm availability, condition and price when you enquire. Photographs show the listed machine.

New machines

New presses, supplied to order.

SANES press series, from 45 ton C-frame power presses to 4,000 ton forging presses. Catalogues and full model specifications are available on request.

SANES press series
Series	Press type	Capacity	Application	Enquire
SHF Series	Forging press	400–4,000 t	Warm and hot die forging	Enquire
SK1 Series	Knuckle-joint forging press	400–1,000 t	Cold forging; coil feed, slug feed or transfer systems	Enquire
FB1 Series	Single-point fine blanking press	120–800 t	Fine blanking	Enquire
SC1 Series	Single-point link press	120–800 t	High-precision, high-throughput pressing	Enquire
SCP Series	C-frame power press	45–260 t	General press work	Enquire
SHP Series	H-frame single-point press	80–800 t	Precision press work with reduced die wear	Enquire
CBL Series	Double-point knuckle link press	200–1,000 t	Fine cold forming, coining and sizing	Enquire
EHW Series	Double-point crankless press, H-frame	200–2,000 t	Progressive and transfer work	Enquire
SLD Series	Double-crank link press	160–600 t	High-precision, high-throughput pressing	Enquire
STD Series	Straight-side double-crank press	160–600 t	Blanking and deep drawing	Enquire
SUD Series	Double-point crankless press	160–600 t	Sheet cold forging, fine blanking, deep drawing	Enquire
SFD Series	Double-point precision forging press	On request	Precision forging	Enquire
SB Series	H-frame long-stroke crankless press	On request	Long-stroke press work	Enquire
EHW-II Series	Three-point double-slide transfer press	On request	Transfer press work	Enquire

Buying a machine from us

Sourced, installed and serviced.

We can deliver, install and commission the machines we supply, service presses afterwards, and source equipment that is not on this list.

Machine supply & service

Looking for a specific machine?

Send the type, capacity and budget. If it is not in stock, we will tell you whether we can source it.

Send a machine enquiry → WhatsApp us
